If you drive a heavy-duty Ford truck equipped with the legendary 4R100 transmission (or its predecessor, the E4OD), you know reliability is key. But after years of towing and heavy work, the factory valve body can start showing its age—leading to mushy shifts, delays, or even premature clutch failure. I’ve personally tackled several 4R100 valve body replacements, and choosing the right kit or complete replacement is crucial for restoring your truck’s reliability and shift quality. This guide breaks down ten options, helping you select the best 4r100 valve body solution for your specific needs, whether you need a full replacement or just a simple repair kit.
Contents
- Shift Rite Transmissions replacement for 4R100 96-UP Main Lower Valve Body W/Updated Transgo 23 Ford Valve Compatible for Ford Shift Rite 4R100
- Transgo E4OD 4R100 Steel replacement 2-3 Shift Valves E4-VL-23
- e4od 4r100 valve body to spacer plate (lower) 1996-04 gasket Automatic transmission
- Superior E4OD-4R100 Shift Correction With Boost Valve
- Transgo E4OD 4R100 E4-VL-LR3 Accumulator valves Transmission Fix Kit
- 4R100 E4OD Transmissions Valve Body Shift Kit 1989 and Up
- TCI 496500 E4OD/4R100 Valve Body Improvement Kit
- Transgo (200-4R-HD2) Valve Body Kit, 200-4R (Crisp to Full Race) (Transgo), (1981-1990)
- Valve Body Kit, Shift Kit, E4OD, 4R100
- FBIP-7G361-CC F81Z-7G391CB Car Transmission Valve Body Compatible With PWM type 4R100 Transmissions Only With 4X4 Valve Bod
- Comparison and Buying Insights
- Final Verdict: Which 4R100 Valve Body is Right for You?
- Frequently Asked Questions About best 4r100 valve body
- What are the main symptoms that indicate I need a new 4R100 valve body?
- Is the E4OD valve body the same as the 4R100 valve body?
- Can I install a 4R100 shift kit myself, or should I take it to a professional?
- What is the advantage of using steel replacement valves over OEM aluminum valves?
- Will a new valve body fix my slipping transmission?
- How do performance shift kits affect daily driving comfort?

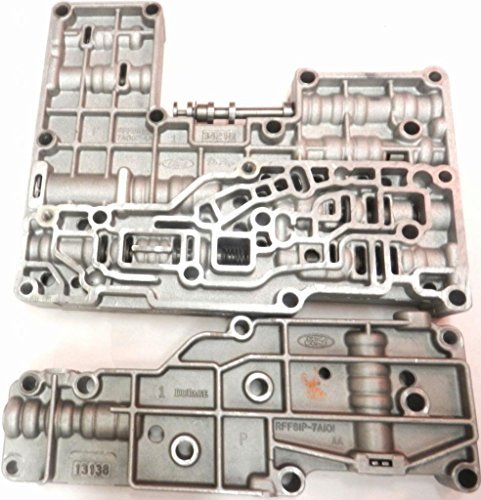

Shift Rite Transmissions replacement for 4R100 96-UP Main Lower Valve Body W/Updated Transgo 23 Ford Valve Compatible for Ford Shift Rite 4R100
This option is fantastic if you’re looking for a comprehensive solution that addresses a common Achilles heel of the 4R100 transmission: the sticking 2-3 shift valve. Shift Rite provides a full replacement of the main lower valve body that comes pre-updated with the renowned Transgo 2-3 valve shift kit modification. This means you’re not just replacing a worn unit; you’re installing an improved one right out of the box, ensuring that tricky 2-3 shift is handled reliably.
Key features that stand out:
– Transgo 2-3 valve shift kit update: Crucial modification included to prevent the common sticking valve issue.
– Ready for E4OD/4R100 with casting #rff6: Ensures compatibility with many late-model units.
– Addresses the sticking 2-3 valve: A necessity for maximizing the longevity of your transmission.
Pros:
– Comes pre-modified, saving installation time and complexity.
– Directly addresses a key weakness in the transmission design.
– High compatibility with most E4OD/4R100 transmissions (excluding specific PTO units).
Cons:
– It is a complete replacement, making it a more expensive option than just a repair kit.
Best for: Truck owners looking for a direct, improved replacement of the lower valve body without needing to install the modification kit themselves.
Expert Opinion: This unit offers excellent value because it packages the necessary repair (the Transgo upgrade) into a quality replacement component. If your old valve body is heavily contaminated or worn, this is a solid choice for performance and peace of mind.

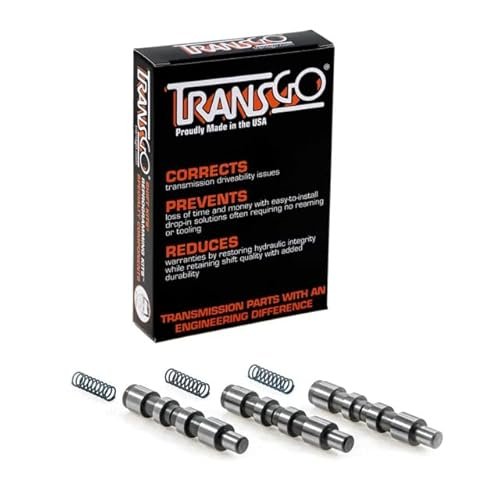

Transgo E4OD 4R100 Steel replacement 2-3 Shift Valves E4-VL-23
If you’ve diagnosed your problem specifically as a stuck 2-3 shift valve leading to no 3rd or 4th gear, this kit is highly targeted and extremely efficient. Transgo provides three sets of steel replacement valves—enough to fix three separate units—making it ideal for shops or DIY mechanics with multiple projects. These are simple drop-in replacements, designed to eliminate the need for complicated machining.
Key features that stand out:
– Steel replacement 2-3 Shift Valves: Durable steel construction replaces potentially problematic OEM aluminum valves.
– Fixes repeated stuck 2-3 shift valve: Addresses the classic “no 3rd or 4th, but reverse is OK” symptom.
– No special tooling or machining necessary: Designed for convenient, drop-in installation.
Pros:
– Excellent cost efficiency, as the kit services up to three transmissions.
– Direct fix for a very specific, common failure point.
– Simple installation process.
Cons:
– Only addresses the 2-3 shift valve; it won’t fix other wear issues in the valve body.
Best for: Mechanics or serious DIYers who have clearly identified the 2-3 shift valve as the root cause of transmission issues in their E4OD/4R100.
Expert Opinion: This kit is a testament to Transgo’s ability to pinpoint weak links. Since you get enough valves for three repairs, splitting the cost with friends or keeping spares is a smart economic move if you frequently work on these transmissions.

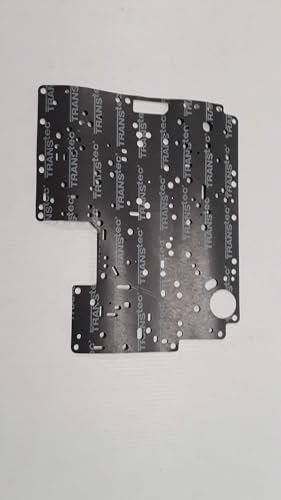

e4od 4r100 valve body to spacer plate (lower) 1996-04 gasket Automatic transmission
While not a valve body itself, this component is indispensable for any repair or replacement. This is the gasket that sits between the valve body and the spacer plate, and using a high-quality replacement gasket is critical to maintaining hydraulic integrity and preventing internal leaks that lead to pressure loss and soft shifts. This REMCO rebuild kit component uses OEM-quality materials.
Key features that stand out:
– OEM Components: Ensures proper fit and sealing properties.
– Critical Sealing Component: Essential for preventing hydraulic cross-leaks after a valve body service.
– Fits 1996-04 models: Broad compatibility for later 4R100 units.
Pros:
– Necessary for a professional, leak-free installation.
– Made from industry-leading, OEM-quality suppliers.
Cons:
– This is purely an accessory/gasket, not the corrective part itself.
Best for: Anyone performing a valve body removal, cleaning, or replacement who needs to ensure perfect sealing upon reinstallation.
Expert Opinion: Never reuse an old transmission gasket. For the cost of this gasket, ensuring a proper seal when you install the best 4r100 valve body or shift kit is non-negotiable for transmission longevity.

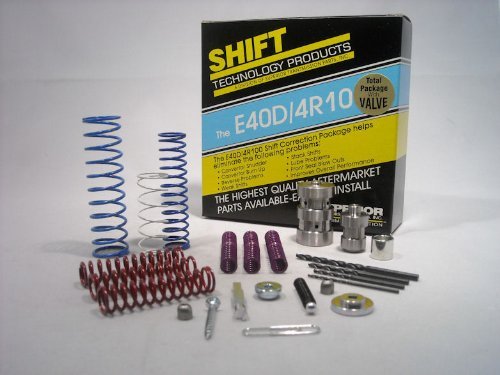

Superior E4OD-4R100 Shift Correction With Boost Valve
The Superior Shift Correction Kit is designed to address a wider range of issues than just a single sticky valve. This kit focuses on increasing line pressure where it counts, which combats common problems like converter burn up, weak shifts, and lubrication issues. The inclusion of a new Boost Valve is key, as a worn boost valve is often the source of low line pressure, especially in high-mileage trucks.
Key features that stand out:
– Addresses multiple issues: Tackles converter burn up, weak shifts, and poor reverse engagement.
– Includes new Boost Valve: Crucial for restoring and maintaining optimal line pressure.
– Improved lubrication: Helps maintain transmission cooling and fluid health.
Pros:
– Comprehensive fix for general shift quality degradation.
– Excellent solution for restoring clutch holding power in towing applications.
– Relatively straightforward installation for a seasoned mechanic.
Cons:
– Requires careful attention during installation to ensure all components are installed correctly.
Best for: Truck owners experiencing generalized shift softness and worrying about premature clutch wear due to low line pressure.
Expert Opinion: If your transmission hasn’t suffered a catastrophic failure but is showing signs of slow engagement and slightly soft shifts under load, this kit offers a preventative and corrective pressure upgrade that can significantly extend the life of your 4R100.

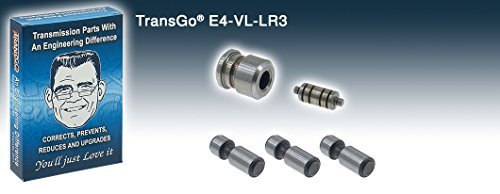

Transgo E4OD 4R100 E4-VL-LR3 Accumulator valves Transmission Fix Kit
This Transgo kit targets the accumulator body, focusing specifically on the line regulator valves. The OEM aluminum valves are known to wear out, leading to inconsistent pressure. This kit replaces them with more durable steel valves. Crucially, it has been upgraded to include a new, larger OEM Line Boost valve and bushing, which directly impacts shift quality—fixing either shifts that are too harsh or shifts that are too soft.
Key features that stand out:
– Steel Line Regulator valves: Replaces problematic OEM aluminum valves for increased durability.
– Upgraded .372 size Line Boost valve and bushing: Critical for stabilizing and increasing line pressure.
– Addresses inconsistent shifts: Fixes missing gear engagement, harsh or soft shifts, and clutch burnup.
Pros:
– Extremely effective at stabilizing hydraulic pressure across the shift spectrum.
– Steel valves offer a substantial longevity improvement over OEM.
– No special tools required for installation.
Cons:
– Installation requires careful handling of small internal components.
Best for: Owners whose transmissions exhibit highly variable and inconsistent shift quality (sometimes quick and harsh, sometimes slow and soft).
Expert Opinion: This is a vital preventative maintenance kit for any high-mileage E4OD or 4R100. Stabilizing the line pressure with the steel valves and the upgraded boost valve is essential for maintaining consistent performance, especially when you are using the best 4r100 valve body replacement options.

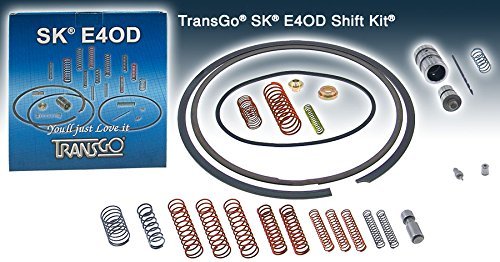

4R100 E4OD Transmissions Valve Body Shift Kit 1989 and Up
This is a general-purpose shift correction kit designed to improve overall transmission functionality from early E4OD models through the later 4R100 series. While details are sparse, these kits typically involve modifications to the separator plate, springs, and valves to increase the speed and firmness of the shifts. The aim is to eliminate clutch slippage and restore a firm, positive feel.
Key features that stand out:
– Wide compatibility: Fits 1989 models and up, covering the entire E4OD/4R100 lifespan.
– General Shift Improvement: Designed to reduce slippage and firm up engagement points.
– Affordable Repair: Usually a cost-effective way to improve shift performance without a full valve body swap.
Pros:
– Addresses general sluggishness and slippage.
– Good option for vehicles that see moderate towing duty.
Cons:
– Lacks specific details, requiring the installer to rely heavily on the kit’s instructions.
Best for: Budget-conscious owners seeking a standard shift quality improvement for a daily driver that occasionally tows.
Expert Opinion: Standard shift kits like this are effective, but they require the underlying valve body components to be relatively unworn. If your transmission has serious wear issues, you might need a more comprehensive replacement like one of the best 4r100 valve body complete units.

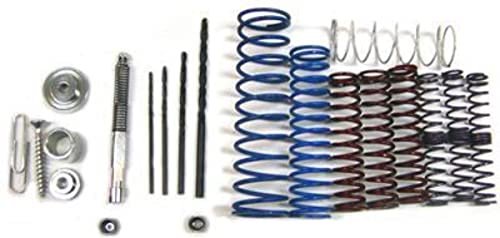

TCI 496500 E4OD/4R100 Valve Body Improvement Kit
TCI is a highly respected name in high-performance transmissions, and their improvement kit reflects that focus. This kit is designed for performance enthusiasts who want a noticeable increase in shift firmness and speed. It covers a broad range of years, from early E4ODs up through the 2003 4R100 models. Installation of this kit transforms soft, lazy factory shifts into quick, deliberate engagements, which is crucial for drag racing or extreme off-road use.
Key features that stand out:
– High-Performance Focus: Designed for increased shift speed and reduced clutch friction.
– Wide Model Coverage: Compatible with E4OD and 4R100 models, 2WD and 4WD.
– Durable Components: TCI components are built to handle higher pressures and demands.
Pros:
– Provides firm, fast shifts for performance applications.
– Reputable brand known for quality internal components.
Cons:
– Shifts may be too harsh for some drivers used to a soft factory feel.
Best for: Performance trucks, heavy towing applications, or any owner looking for a distinct, high-performance shift feel.
Expert Opinion: If you are running high horsepower or regularly pushing your truck’s limits, this TCI improvement kit provides the necessary pressure and speed to protect your clutch packs from slippage—a must-have for durability under stress.

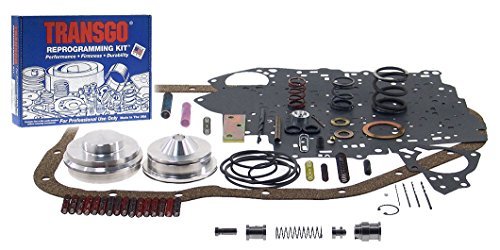

Transgo (200-4R-HD2) Valve Body Kit, 200-4R (Crisp to Full Race) (Transgo), (1981-1990)
A note on this specific product: Despite being listed here, the Transgo 200-4R-HD2 kit is specifically designed for the GM 200-4R transmission, not the Ford E4OD/4R100.
If we were reviewing this kit for a GM application, we would highlight its extreme performance focus. It offers options from firm street shifts all the way up to full race conditions. The kit includes a significant power-boosting feature: a new dual feed 3rd Clutch circuit which dramatically increases the holding torque for the 3rd gear clutch. It also adds a Billet 2nd Servo Piston for superior band holding.
Key features that stand out (for 200-4R applications):
– Dual Feed 3rd Clutch circuit: Increases 3rd Clutch holding torque by 200%.
– Billet 2nd Servo Piston: Significantly increases band holding torque.
– Easy Installation: Does not require transmission removal.
Pros (for 200-4R):
– Transforms performance transmission capabilities.
– Excellent durability for high horsepower.
Cons:
– Completely incompatible with the 4R100 transmission.
Best for: Owners of classic GM vehicles (Buicks, Oldsmobiles, etc.) using the 200-4R transmission looking for serious performance upgrades.
Expert Opinion: Crucial warning: While Transgo makes some of the best 4r100 valve body repair components, this specific part number is strictly for GM’s 200-4R. Do not attempt to install this in your Ford 4R100.

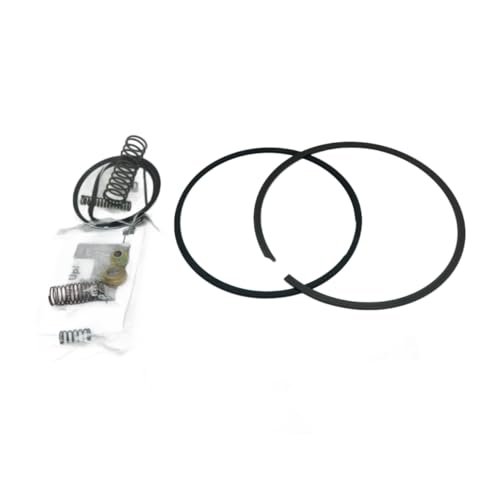

Valve Body Kit, Shift Kit, E4OD, 4R100
This product represents a generic, universal approach to fixing common shift complaints in the E4OD and 4R100 transmissions. Like other basic shift kits, it aims to restore hydraulic pressure balance and firm up the shifts, often through the use of modified springs and spacers. This is an economical way to postpone the need for a full valve body replacement if the core casting is still in good shape.
Key features that stand out:
– Universal Correction: Addresses common problems like slow engagement and slippage.
– Basic Improvement: Provides a noticeable improvement over a failing stock valve body.
– Broad Model Coverage: Suitable for most E4OD and 4R100 applications.
Pros:
– Low cost entry point for transmission correction.
– Effective for restoring standard performance.
Cons:
– May not resolve complex or advanced wear issues compared to a full replacement.
Best for: Light-duty daily drivers where the primary goal is to stop excessive clutch slippage and restore a firm feel.
Expert Opinion: Always confirm the quality of the included components with the supplier, as generic kits can vary widely. This kit is a good solution for mild correction, but if you push your truck hard, you’ll want a kit that includes the upgraded steel valves found in options like the Transgo E4-VL-LR3.

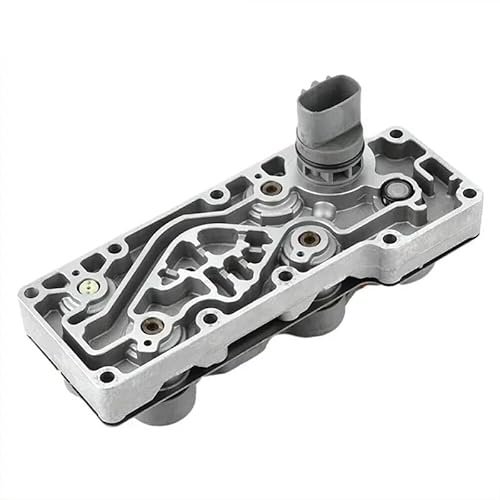

FBIP-7G361-CC F81Z-7G391CB Car Transmission Valve Body Compatible With PWM type 4R100 Transmissions Only With 4X4 Valve Bod
If your original valve body is irreparable due to cracks, significant wear, or solenoid failure, a complete replacement unit like this is the best course of action. This unit is specifically compatible with the later, Pulse Width Modulation (PWM) type 4R100 transmissions found in 4×4 applications. It’s designed to restore original driving comfort and stability, rather than providing an aggressive performance upgrade.
Key features that stand out:
– PWM Type Compatibility: Essential for vehicles requiring the later electronic controls.
– Smooth Shifting: Focuses on restoring OEM-level comfort and power output smoothness.
– Keep the hydraulic system stable: Precisely controls hydraulic flow and pressure to OEM specifications.
Pros:
– Complete, ready-to-install replacement unit.
– Extends the service life of the gearbox by reducing shift impact.
– Restores smooth, comfortable shifts that adapt to driving style.
Cons:
– Full replacement is the highest cost option.
Best for: Owners seeking to return their 4×4 4R100 transmission to optimal, reliable factory performance and comfort, particularly if their original unit has failed electronically or structurally.
Expert Opinion: When choosing a full replacement unit, ensuring it matches your specific truck’s type (PWM vs. non-PWM, 4×4 vs. 2WD) is paramount. This unit offers excellent benefits for transmission longevity and stability, making it one of the best 4r100 valve body options for comprehensive restoration.
Comparison and Buying Insights
Choosing the best 4r100 valve body depends entirely on the extent of your transmission damage and your budget.
For targeted repairs, the Transgo E4OD 4R100 Steel replacement 2-3 Shift Valves E4-VL-23 and the Transgo E4OD 4R100 E4-VL-LR3 Accumulator valves are the clear winners. These kits isolate the weakest points (the 2-3 shift valve and the line regulator valves) and replace them with steel components, which is crucial for long-term reliability. If you know exactly what is failing, these are the most cost-effective fixes.
If you need a comprehensive pressure upgrade for heavy towing or performance, the TCI 496500 E4OD/4R100 Valve Body Improvement Kit and the Superior E4OD-4R100 Shift Correction With Boost Valve provide the best results. They increase line pressure across the board, which is essential to prevent clutch slippage and stop converter burn up.
For a full replacement that includes built-in improvements, the Shift Rite Transmissions replacement is an excellent hybrid choice, offering a new unit with the Transgo 2-3 upgrade already handled. If your budget allows and you need an exact OEM replacement for a late-model 4×4, the FBIP-7G361-CC is your best bet for factory-smooth shifting and reliability. Remember to always confirm your transmission’s F6 Casting Code compatibility, especially when using Transgo products.
Final Verdict: Which 4R100 Valve Body is Right for You?
If your Ford truck is a daily driver suffering from just a few missed or delayed shifts, and you want the most bang for your buck, the Transgo E4OD 4R100 E4-VL-LR3 is the smart choice. It stabilizes pressure, upgrades key components to steel, and prevents many common failures before they start.
For the heavy hauler or performance enthusiast who demands firm, reliable engagement under high load, the TCI 496500 E4OD/4R100 Valve Body Improvement Kit delivers the necessary performance and protection against heat and slippage.
Finally, if your transmission has experienced significant failure or your original valve body casting is compromised, investing in the Shift Rite Transmissions replacement for 4R100 96-UP offers the ideal balance: a brand-new component paired with essential, pre-installed reliability upgrades. This is arguably the best 4r100 valve body solution when looking for a guaranteed fresh start.
Frequently Asked Questions About best 4r100 valve body
What are the main symptoms that indicate I need a new 4R100 valve body?
Common signs include delayed engagement (especially in reverse or drive), “mushy” or soft shifts, gears failing to engage (often 3rd or 4th gear, which points to the common 2-3 valve sticking), or transmission overheating due to excessive clutch slippage. If you notice changes in shift timing or feel, it’s time to inspect the valve body.
Is the E4OD valve body the same as the 4R100 valve body?
They are highly similar, as the 4R100 is essentially an electronically improved version of the E4OD. However, there are significant differences depending on the year, specifically related to the size of the boost valve and whether the unit is Pulse Width Modulation (PWM) controlled. When buying a replacement or repair kit, always verify that the product listing specifies compatibility with your truck’s exact model year and casting code (like the F6 Casting Code mentioned in Transgo kits).
Can I install a 4R100 shift kit myself, or should I take it to a professional?
Shift kit installation is generally considered an intermediate to advanced repair. It requires removing the transmission pan and filter, careful attention to hydraulic components, and sometimes drilling the separator plate according to instructions. While it doesn’t require removing the entire transmission, you must be comfortable working with complex internal transmission parts. If you are unsure, professional installation is recommended to ensure transmission longevity.
What is the advantage of using steel replacement valves over OEM aluminum valves?
The line regulator and shift valves inside the 4R100 valve body operate under high pressure and slide back and forth in aluminum bores. Over time, the softer aluminum valves can wear down the bores, causing fluid to bypass and pressure to drop. Steel replacement valves, found in many of the best 4r100 valve body repair kits, are more durable and help prevent wear in the aluminum bore, leading to much more stable and consistent hydraulic pressure control.
Will a new valve body fix my slipping transmission?
A new or upgraded valve body can fix slipping if the root cause is hydraulic—meaning low line pressure due to worn regulator valves, sticky shift valves, or internal leaks. However, if the clutch packs themselves are burned out, worn down, or damaged, only a full transmission rebuild will fix the slipping. A proper diagnosis before purchasing a valve body is essential.
How do performance shift kits affect daily driving comfort?
Performance kits, like those offered by TCI or Superior, are designed to make shifts faster and firmer by increasing line pressure. While this is great for durability and performance, it will make the shifts more noticeable or “harsh” than the soft, factory feel. If you prioritize maximum comfort, look for a full replacement unit focused on smooth shifting, or a mild correction kit.
