As someone who loves diving into DIY electronics projects and battery pack repairs, finding the best DIY spot welder has been a game-changer for my workshop. I’ve spent countless hours researching and trying out various kits and boards, learning what works and what doesn’t. This guide is a result of that hands-on experience, helping you navigate the options for a reliable and efficient portable spot welder or DIY spot welder kit without breaking the bank. We’ll explore ten top models, focusing on their practical benefits and how they can empower your next project.
Contents
- Focket Spot Welder PCB Circuit Board, 99 Gears Adjustable
- Joyzan Spot Welder, Portable Transistor Mini Control Board
- ZHANGLI DIY Portable Battery Storage Spot Welder Set
- Havcybin Welding Machine Pen DIY Portable 12V Battery
- 8000W Spot Welder, Handheld Spot Welder, Portable Spot Welder
- Portable Spot Welder, Geevorks DIY Spot Welding Tool 99 Gears
- EUBUY Digital Power Spot Welder Control Board Kit
- Spot Welder Control Board, High Output Battery Spot Welder
- Spot Welder Control Board Digital Spot Welding DIY
- Spot Welder, Portable Transistor Mini Spot Welder, LCD Screen
- Comparison Insights for Your Best DIY Spot Welder Choice
- Final Verdict
- Best DIY Spot Welder: Comprehensive FAQ
- Q1: What is a DIY spot welder and why would I need one?
- Q2: What kind of battery do I need to power a DIY spot welder kit?
- Q3: Can these DIY spot welders weld pure nickel strips or just nickel-plated steel?
- Q4: How important is the adjustable gear setting on a DIY spot welder?
- Q5: Are DIY spot welders safe to use? What safety precautions should I take?
- Q6: What’s the difference between automatic welding and manual trigger modes?

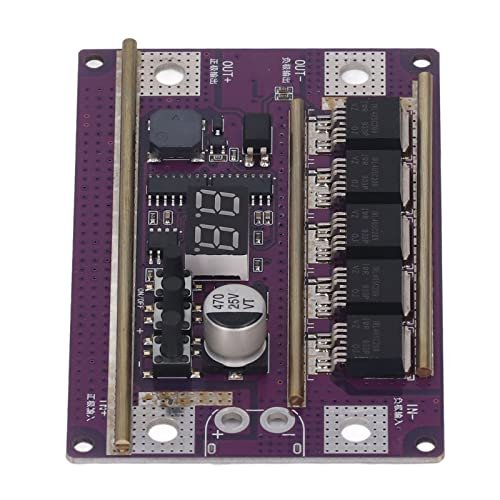

Focket Spot Welder PCB Circuit Board, 99 Gears Adjustable
This Focket PCB circuit board stands out for its robust performance, offering a massive 99-gear adjustability for precise welding. It’s truly a high-power board, capable of continuous welding on various nickel plates, making it versatile for different battery types. The design incorporates 5 MOS tubes, enabling a strong current output for clean, accurate welds, even on thicker materials. It’s a fantastic option if you’re comfortable with assembling components and connecting your own power source.
Key features that stand out:
– High Power Output: 99 gears adjustable for precise welding on nickel plates.
– Wide Battery Compatibility: Suitable for lithium cylindrical and nickel-hydrogen batteries (e.g., 18650, 21700, 32650).
– Large Current Capacity: Uses 5 MOS tubes with up to 2390A max current for efficient welding.
– Material Versatility: Supports welding 0.05mm to 0.3mm nickel, iron, and stainless steel sheets.
- Pros:
- Excellent power and precision with 99 adjustable gears.
- Handles a broad range of nickel sheet thicknesses.
- High current capacity ensures strong, beautiful welds.
- Versatile for many common battery sizes.
- Cons: Requires a separate power supply and some assembly, not a ready-to-use unit.
Best for: Experienced DIYers and hobbyists who want maximum control and power for building custom battery packs.
Expert Opinion: This unit offers professional-grade power adjustments, making it suitable for intricate battery work where consistency and strength are paramount.

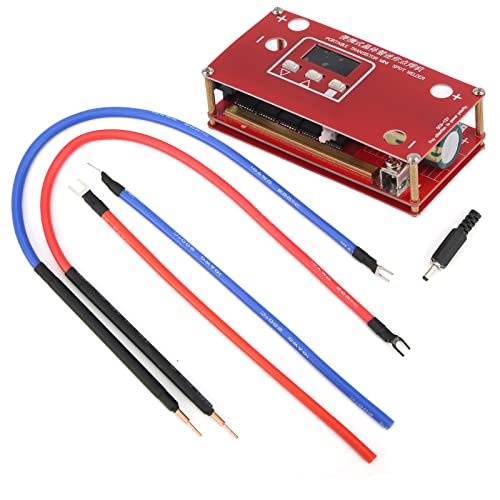

Joyzan Spot Welder, Portable Transistor Mini Control Board
The Joyzan Portable Transistor Mini Control Board brings convenience to the forefront with its intuitive LCD screen. This DIY spot welding tool provides real-time feedback on parameters, making it incredibly user-friendly for both beginners and seasoned pros. Its automatic welding functionality streamlines tasks, delivering consistent welds with minimal fuss, and the design prioritizes easy component replacement for hassle-free maintenance.
Key features that stand out:
– Intuitive LCD Screen Display: Provides clear, real-time feedback on welding parameters.
– Easy to Use: Simple controls and clear instructions, great for beginners.
– Automatic Welding Functionality: Streamlines the welding process for consistent results.
– Convenient for Replacement: Designed for easy component maintenance and longevity.
– Wide Application: Suitable for metal fabrication, jewelry making, electronic repairs, and more.
- Pros:
- LCD screen enhances control and precision.
- Automatic welding simplifies tasks and improves consistency.
- User-friendly design, good for all skill levels.
- Versatile for various welding applications beyond just batteries.
- Cons: The ‘mini’ size might imply limitations for heavy-duty, continuous use compared to larger setups.
Best for: Beginners and those needing an easy-to-use, versatile spot welder for diverse, smaller projects.
Expert Opinion: The LCD and automatic welding are huge assets for ease of use, making this a great entry point into DIY spot welding with a professional feel.

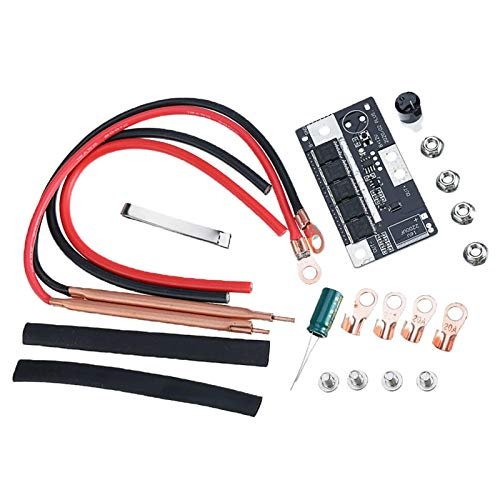

ZHANGLI DIY Portable Battery Storage Spot Welder Set
The ZHANGLI DIY Portable Battery Storage Spot Welder Set is engineered for stability and strong current delivery. It uses high-frequency, low-resistance capacitors to ensure a stable power supply, crucial for consistent welds. This kit focuses on safety and performance, even providing tips for connecting to your battery source to prevent overload. If you’re looking for a robust DIY kit that you can power with your own existing batteries, this is a solid contender.
Key features that stand out:
– More Stable Power: Uses 25V low internal resistance Sanyo high-frequency capacitors.
– Robust Design: MOS upper and lower bold and tin design for smaller internal resistance and stronger current.
– Includes Essential Components: Comes with circuit board, copper noses, screws, buzzer, nickel sheet, capacitance, soldering pens, input wires, and heat shrink tube.
– Battery Suggestion: Optimized for 20-45Ah batteries or high C-rate aeromodel battery packs.
- Pros:
- Enhanced power stability for consistent welds.
- Strong current delivery due to optimized design.
- Comes with a comprehensive set of components for assembly.
- Provides valuable tips for safe battery connection.
- Cons: Requires you to source a suitable battery, which isn’t included in the package.
Best for: DIY enthusiasts who already have suitable power source batteries and appreciate a stable, high-current design for their welding projects.
Expert Opinion: This kit’s emphasis on power stability and current strength makes it a reliable choice for achieving high-quality spot welds, especially if you have the right battery.

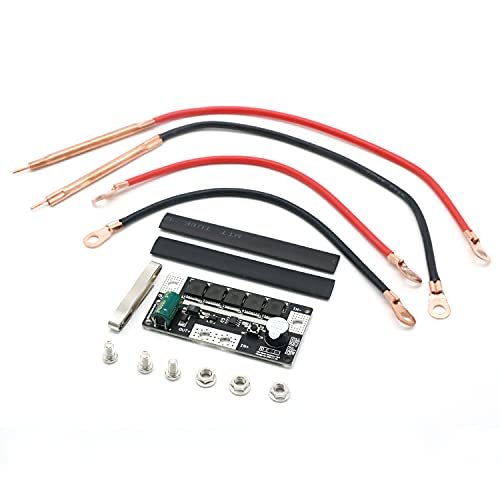

Havcybin Welding Machine Pen DIY Portable 12V Battery
The Havcybin Welding Machine Pen is a straightforward and highly portable solution for anyone needing a DIY 12V battery spot welder. It’s designed for electronic enthusiasts with basic electrical knowledge and a desire for a compact, reliable tool. You supply your own 12V battery, and this unit delivers a strong welding current, making it perfect for quick repairs and on-the-go projects.
Key features that stand out:
– Portable DIY Solution: Compact and easy to carry for various projects.
– 12V Battery Powered: Users provide their own 12V battery (capacity x rate > 150A).
– Strong Welding Current: Delivers approximately 90A~150A for effective welds.
– High-Quality Build: Described as stable, reliable, and durable.
- Pros:
- Extremely portable and compact design.
- Simple and effective for basic spot welding tasks.
- Durable construction for long-term use.
- Affordable entry into DIY spot welding.
- Cons: Lacks advanced features like adjustable gears or an LCD screen found on other models.
Best for: Electronic enthusiasts seeking a very portable, no-frills spot welder for basic repairs and projects using an existing 12V battery.
Expert Opinion: Its sheer portability and simplicity are its strongest suits, but users should be prepared for a more manual, less adjustable experience.

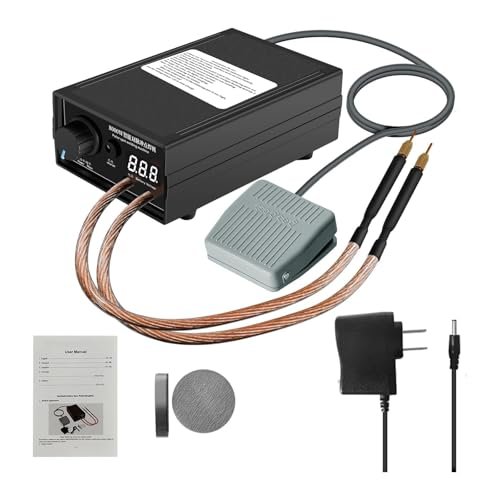

8000W Spot Welder, Handheld Spot Welder, Portable Spot Welder
This 8000W Handheld Spot Welder is a powerful contender, featuring dual pulse output and a convenient foot pedal welding mode. It excels at welding nickel sheets from 0.1-0.3mm thick, ensuring neat and elegant spots. With 9 levels of output power adjustment and an LCD screen for real-time voltage monitoring, it combines power with user control. The removable and replaceable solder pins add to its longevity and ease of use.
Key features that stand out:
– 8000W Dual Pulse Output: Easily welds 0.1-0.3mm thick nickel sheets.
– 9-Level Knob Adjustment: Adjustable output power from 0-800A.
– Foot Pedal Control: Allows for more precise and arbitrary welding.
– LCD Screen Display: Shows real-time internal voltage for timely charging.
– Wide Application: Suitable for 18650 battery nickel strips, iron, and stainless steel sheets.
- Pros:
- High power output for thicker nickel strips.
- Precise 9-level power adjustment for various materials.
- Foot pedal control enhances welding accuracy and convenience.
- LCD screen provides vital battery voltage feedback.
- Replaceable solder pins extend product life.
- Cons: The unit’s own battery voltage significantly impacts performance, requiring careful monitoring and charging.
Best for: Users needing a powerful, adjustable, and convenient spot welder for various battery pack constructions and general sheet metal work.
Expert Opinion: The combination of high power, adjustable output, and foot pedal control makes this a versatile workhorse for serious DIY battery builders.

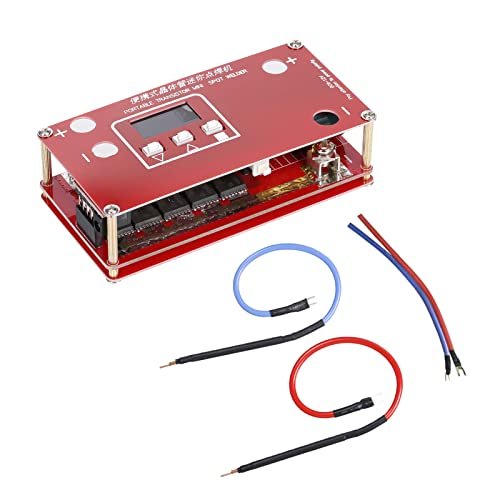

Portable Spot Welder, Geevorks DIY Spot Welding Tool 99 Gears
The Geevorks Portable Spot Welder is a versatile DIY spot welding tool offering 99 gears of adjustability and flexible power options. It can be powered by either a lithium battery or a 12V car battery, giving you freedom in your power source. Featuring two welding modes – automatic touch welding and a manual trigger interface – it caters to different preferences. The microcomputer-controlled pulse ensures accurate output, and the LCD display helps monitor parameters.
Key features that stand out:
– Flexible Power Options: Can be powered by lithium or 12V car battery.
– 2 Touch Welding Modes: Automatic and manual trigger interface.
– 99-Gear Pulse Accuracy: Single chip microcomputer control ensures precise output.
– LCD Display Screen: Shows welding parameters for informed use.
– Easy to Disassemble: Soldering pen and input wire connected by U-shaped terminals for easy replacement.
- Pros:
- Highly adjustable with 99 gears for precision.
- Dual welding modes offer flexibility.
- Accurate pulse control for consistent weld quality.
- Easy component replacement for maintenance.
- LCD screen for monitoring parameters.
- Cons: Users must note the “Do not exceed 50 gears” warning, which might be confusing given the 99-gear feature.
Best for: DIYers who value flexibility in power sources and welding modes, needing precise control for varied spot welding tasks.
Expert Opinion: The wide range of adjustability combined with flexible power options makes this a strong contender for those who tackle diverse projects.

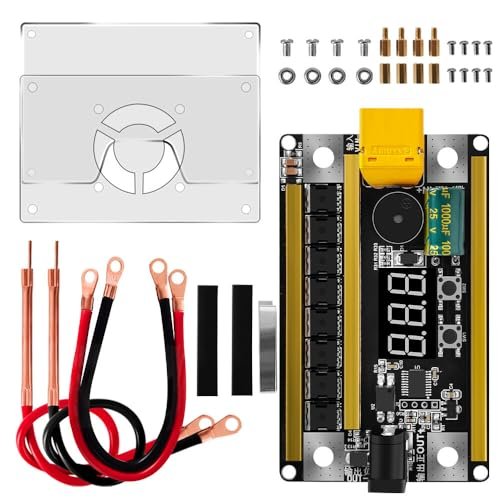

EUBUY Digital Power Spot Welder Control Board Kit
The EUBUY Digital Power Spot Welder Control Board Kit is engineered for precision and durability, featuring 99 adjustable output power gears and an 8 MOS transistor design for a maximum current of 2400A. It boasts a 3-digit digital tube for real-time gear display and a voltmeter function with high measurement accuracy. The aluminum oxide copper spot welding needles included are designed for high current capacity and longevity, ensuring efficient and beautiful welds on various materials.
Key features that stand out:
– Adjustable 99 Gears: Real-time gear display on a 3-digit digital tube.
– High Current Capacity: 8 MOS transistors with max current up to 2400A.
– Material Support: Welds 0.1-0.2mm nickel, iron, and stainless steel plates.
– Durable Welding Pens: Aluminum oxide copper spot welding needles for efficiency and durability.
– Voltmeter Function: 12-bit high-precision ADC for 8-24V voltage testing with 0.01 accuracy.
- Pros:
- High current and 99 gears for precise, powerful welding.
- Excellent durability with high-quality welding pens.
- Real-time digital display for gears and accurate voltmeter.
- Supports a good range of metal sheet thicknesses.
- Robust MOS transistor design for sustained performance.
- Cons: Being a control board kit, it requires users to source and connect their own power supply and possibly build an enclosure.
Best for: Advanced DIYers and electronics enthusiasts who are comfortable with component assembly and want a high-performance, accurate control board.
Expert Opinion: The integrated voltmeter and robust MOS tube design underscore this kit’s commitment to both precision and power, making it a professional-grade option for custom builds.

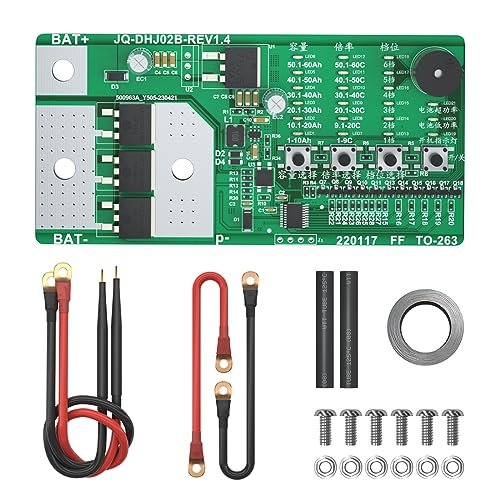

Spot Welder Control Board, High Output Battery Spot Welder
This High Output Battery Spot Welder Control Board provides a safe and adaptable solution for DIY spot welding. It allows you to use your existing bike battery or other suitable power sources, intelligently matching and determining compatibility to prevent damage. With 6 adjustable gears, it can weld thin materials (0.02mm to 0.03mm) with high accuracy and is versatile for repairing various electronic devices beyond just battery packs, such as electric toothbrushes or toy cars. The kit comes with a rich set of accessories for immediate operation.
Key features that stand out:
– Safe Power Selection: Requires self-contained power (6.5V-16V, specific discharge currents).
– 6 Adjustable Gears: For precise welding of materials from 0.02mm to 0.03mm.
– Widely Used: Suitable for various lithium and nickel-hydrogen batteries, and electronic device repair.
– Intelligent Power Matching: Prevents damage by checking power supply compatibility.
– Rich Accessories: Includes connecting wires, screws, spot welding pens, and 2-meter nickel plated plates.
- Pros:
- Very safe with intelligent power matching and protection.
- Versatile for both battery pack assembly and electronic device repair.
- Comes with a comprehensive set of accessories to get started.
- Good control with 6 adjustable gears for delicate work.
- Cons: The welding thickness capacity (0.02mm-0.03mm) might be considered limited compared to units handling 0.1-0.3mm.
Best for: Users who prioritize safety and versatility for repairing small electronic devices, and those who have specific battery power sources available.
Expert Opinion: The built-in safety features and focus on repair applications make this board particularly appealing for those extending the life of their everyday electronics.

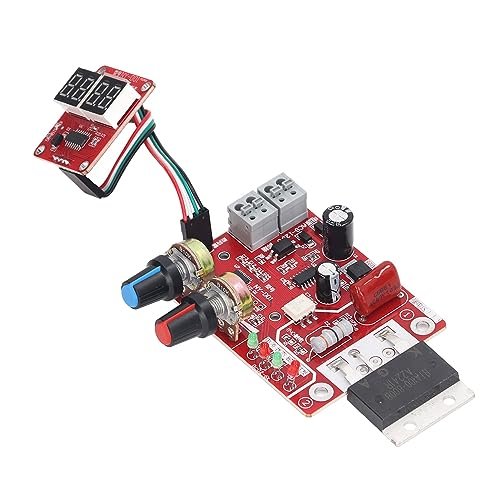

Spot Welder Control Board Digital Spot Welding DIY
This Digital Spot Welding DIY Control Board is a focused solution for simple welding and DIY projects, driven by an STM8 microcontroller. It prioritizes safety with optocoupler isolation for strong and weak current separation. The design includes a 0 junction detection circuit for accurate SCR phase movement, making installation and use straightforward. With digital current control and an indicator light display, it’s a reliable professional part for your tools, built with quality electronic components for longevity.
Key features that stand out:
– STM8 Microcontroller: Current controller designed for DIY/simple welding.
– Optocoupler Isolation: Ensures safety between strong and weak currents.
– 0 Junction Detection Circuit: For accurate SCR phase move and easy installation.
– Digital Current Control: With indicator light display panel.
– Long Service Life: Made with quality electronic components for durability.
- Pros:
- Enhanced safety features with optocoupler isolation.
- Accurate current control for consistent welds.
- Easy to install and use for DIY projects.
- Durable components ensure a long product life.
- Cons: Lacks explicit details on welding thickness, power output, or battery compatibility compared to other listed models.
Best for: DIYers and technicians looking for a straightforward, safe, and reliable control board for basic spot welding applications, especially where component longevity is key.
Expert Opinion: Its core strength lies in its safety features and precise control, making it a solid foundation for a custom spot welder project if you know your specific power requirements.

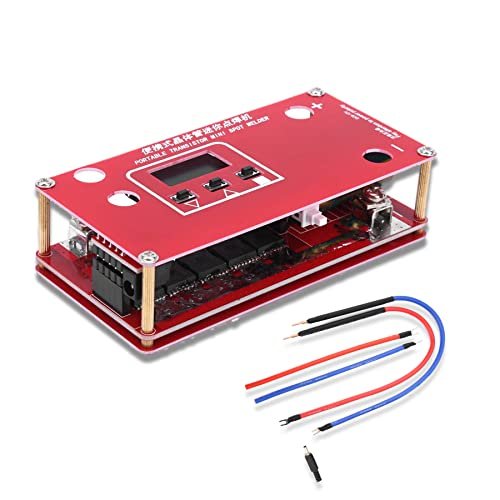

Spot Welder, Portable Transistor Mini Spot Welder, LCD Screen
This Portable Transistor Mini Spot Welder with an LCD screen is designed to offer stable and precise welding for nickel-plated steel strips between 0.1mm and 0.15mm. It incorporates a 25V10000uF high-frequency low-resistance capacitor for energy compensation, significantly increasing stability. Driven by imported special chips, its five 300A MOS tubes switch rapidly to prevent tube explosions, ensuring durability. The microcomputer control, accurate output pulse, and LCD screen displaying parameters make it highly user-friendly.
Key features that stand out:
– Enhanced Stability: 25V10000uF capacitor for energy compensation.
– Durable MOS Tubes: Five 300A MOS tubes with rapid switching to prevent explosions.
– Microcomputer Control: Accurate output pulse with LCD screen displaying parameters.
– High Overcurrent Capacity: Power board uses 2 ounces of copper, 10AWG wires for soldering pens and input.
– Automatic & Manual Modes: Offers flexibility in welding operations.
- Pros:
- High stability due to capacitor-based energy compensation.
- Durable design with rapid-switching MOS tubes.
- Precise control and parameter display via LCD.
- Excellent overcurrent capacity for consistent performance.
- Flexibility with both automatic and manual welding modes.
- Cons: Primarily optimized for 0.1mm to 0.15mm nickel-plated steel, which might limit its use for pure nickel or thicker strips.
Best for: Users focused on welding nickel-plated steel strips for battery packs, who value stability, precision, and durability in a compact form factor.
Expert Opinion: The careful engineering around stability and MOS tube protection, coupled with the LCD display, positions this as a reliable and user-friendly option for consistent battery pack work.
Comparison Insights for Your Best DIY Spot Welder Choice
When you’re sifting through these DIY spot welder options, you’ll notice a few key differentiators. For those prioritizing raw power and versatility in material thickness, the Focket PCB Board or the 8000W Handheld Welder with their higher capacity for thicker nickel strips stand out. If ease of use and clear feedback are your main concerns, models like the Joyzan or the Portable Transistor Mini Spot Welder with their LCD screens and automatic modes are excellent choices for both beginners and those who appreciate visual parameter control.
For the budget-conscious or those who prefer a more stripped-down, purely functional approach, the Havcybin Welding Machine Pen or the EUBUY/ZHANGLI control board kits offer solid performance once you integrate your own battery. Safety features like intelligent power matching and optocoupler isolation are strong points for the High Output Battery Spot Welder Control Board and the Digital Spot Welding DIY Control Board, respectively, which are crucial for peace of mind.
Consider your primary application: are you building many 18650 battery packs? Then look for models with wider battery compatibility and good pulse control. Are you doing quick repairs on small electronics? Portability and ease of setup might be more important. No matter your choice, ensure the model’s welding thickness capability matches the nickel strips you plan to use.
Final Verdict
After meticulously reviewing these excellent options, if I had to pick a top tier for the best DIY spot welder experience, it would boil down to what you prioritize most.
For the advanced DIYer seeking maximum power and adjustability, the Focket Spot Welder PCB Circuit Board is incredibly compelling with its 99 gears and high current capacity, allowing for precision across a wide range of materials. It’s a powerhouse for serious battery builders.
If you’re a beginner or someone who values a user-friendly experience with smart features, the Joyzan Spot Welder with its LCD screen and automatic welding offers an intuitive entry into the world of spot welding, making complex tasks feel simple.
And for those who need a balance of power, adjustability, and convenience in a self-contained unit, the 8000W Spot Welder with its foot pedal control and 9-level adjustment truly shines, providing robust performance for various projects.
Ultimately, the right DIY spot welder for you will be the one that best aligns with your skill level, project needs, and available power sources. Each of these models offers unique strengths, empowering you to tackle battery pack assembly and repair with confidence.
Best DIY Spot Welder: Comprehensive FAQ
Q1: What is a DIY spot welder and why would I need one?
A: A DIY spot welder is typically a kit or a control board that allows you to build your own spot welding machine, often powered by external batteries. You’d need one for tasks like assembling custom battery packs (e.g., for electric bikes, power tools), repairing existing battery packs, or connecting small metal components quickly and securely without traditional soldering. It offers strong, precise connections ideal for nickel strips on batteries.
Q2: What kind of battery do I need to power a DIY spot welder kit?
A: Most DIY spot welder kits require a high-discharge battery as a power source. Common recommendations include a 12V car battery, a 20-45Ah lead-acid battery, or a high C-rate 3S (11.1V) aeromodel LiPo battery pack. The key is to have a power source capable of delivering high instantaneous current (often 150A or more) without significant voltage drop, which is crucial for effective spot welds.
Q3: Can these DIY spot welders weld pure nickel strips or just nickel-plated steel?
A: Many of the higher-power DIY spot welder options reviewed here are capable of welding both nickel-plated steel and pure nickel strips. However, welding pure nickel usually requires more power and precise settings. Always check the specific product’s specifications for the maximum thickness of pure nickel it can handle. For example, some units specify 0.1mm pure nickel, while others handle up to 0.3mm nickel-plated steel.
Q4: How important is the adjustable gear setting on a DIY spot welder?
A: Adjustable gear settings are very important for controlling the welding energy. They allow you to fine-tune the output power to match the thickness and type of nickel strip you’re welding, as well as the battery you’re working with. A wider range of adjustability, like 99 gears, provides greater precision and versatility, helping you achieve cleaner, stronger welds without damaging your batteries or materials.
Q5: Are DIY spot welders safe to use? What safety precautions should I take?
A: When handled correctly, DIY spot welders are generally safe. However, they involve high currents and voltage, so precautions are vital. Always wear safety glasses, ensure proper ventilation, and avoid touching the welding pens or electrodes when powered. If you’re using a kit that requires assembly, make sure all connections are secure and insulated. Some kits, like the High Output Battery Spot Welder, include intelligent power matching for added safety.
Q6: What’s the difference between automatic welding and manual trigger modes?
A: In automatic welding mode, the spot welder detects contact between the welding pens and the nickel strip, then automatically fires the weld pulse after a very short delay. This simplifies operation and can improve consistency. Manual trigger mode requires you to press a button (often a foot pedal) to initiate the weld pulse, giving you more precise control over the exact moment of welding. Many models offer both, allowing you to choose based on your preference and task.
Affiliate Disclosure: As an Amazon Associate, I earn from qualifying purchases made through links on this site.
