Compare 7 Best Ignition Box For Drag Racing Units

When I’m sitting in the staging lanes, waiting for the tree to drop, the last thing I worry about is my timing slipping—and that confidence comes directly from a reliable ignition system. Choosing the best ignition box for drag racing isn’t just about throwing money at horsepower; it’s about controlling that power with precision. We’ve tested a variety of units and components, from fully programmable control boxes to the essential mounting hardware and switch panels that tie the whole setup together, to help you make an informed decision on maximizing your consistency and reaction time down the strip.

IMAGE	PRODUCT NAME	AMAZON LINK
	MSD 4224 Programmable MC4 Drag Racing Ignition Control Box	View on Amazon
	QuickCar Racing Products Ignition Box Bracket	View on Amazon
	Digital Electronic Ignition ECU Box Unit Compatible with…	View on Amazon
	HZ Ignition Switch Control Box Compatible with Harbor…	View on Amazon
	QuickCar Racing Products 50-2034 Single Box Dual Trigger…	View on Amazon
	QuickCar Racing Products 50-1714 Single Box Dual Trigger…	View on Amazon
	HZ Ignition Switch Control Box with Key for Honda GX610…	View on Amazon

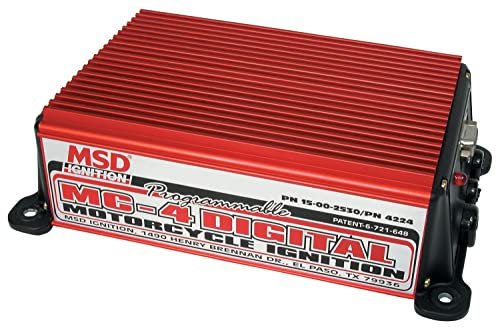

MSD 4224 Programmable MC4 Drag Racing Ignition Control Box

If your racing strategy involves high boost, nitrous, or complex timing maneuvers, the MSD 4224 is the professional choice. This box offers exceptional control, allowing racers to tailor power delivery exactly how they need it, run after run. The ability to use a PC to program the curves means you can custom-tune for specific track conditions or fuel types. The level of precision offered by this unit truly sets it apart from standard boxes, making it indispensable for competitive classes.

Key features that stand out:
– PC programmable for custom curves
– Individual cylinder timing adjustments must use a cam sync sensor
– Timing launch retard
– Three independent step retards
– Boost retard curve up to 45-psi manifold air pressure sensor not supplied

Pros:
– Unmatched timing accuracy and control for high-HP engines.
– Essential for fine-tuning boosted applications.
– Offers multi-step retards for nitrous or staged launches.

Cons:
– Requires significant knowledge and additional sensors (like a cam sync or MAP sensor) to utilize full capabilities.

Best for: Professional or high-level bracket racers running forced induction or multi-stage nitrous setups.

Expert Opinion: This isn’t just an ignition box; it’s a powertrain management tool. While the initial setup is complex, the resulting control over your engine’s power band is the key to shaving milliseconds off your elapsed time.

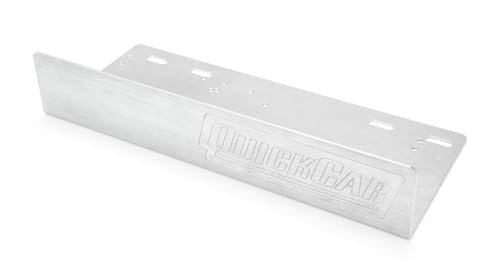

QuickCar Racing Products Ignition Box Bracket

While not an ignition box itself, the QuickCar Bracket is an absolutely crucial component for racers. You can have the most expensive control box on the market, but if it’s rattling loose under the hood, you’ll suffer inconsistent performance or, worse, electrical failure. This bracket provides a robust, dedicated mounting solution, ensuring your sensitive electronic components are secure against vibration and extreme G-forces.

Key features that stand out:
– Item Package Dimension: 13.7799999859444L x 6.8899999929722W x 2.9899999969502H inches
– Item Package Weight – 0.50926782522 Pounds
– Item Package Quantity – 1
– Product Type – MOUNT BRACKET

Pros:
– Ensures the control box is securely mounted, maximizing lifespan and reliability.
– Designed specifically for racing applications where vibration is intense.
– Lightweight and easy to install.

Cons:
– Must be sure the dimensions match your specific ignition box model before purchasing.

Best for: Any racer installing a separate ignition control box (like the MSD) who needs a dedicated, reliable mount.

Expert Opinion: Don’t cheap out on mounting hardware. Securing your best ignition box for drag racing components properly is foundational to a reliable electrical system, especially when dealing with the shock loads of a launch.

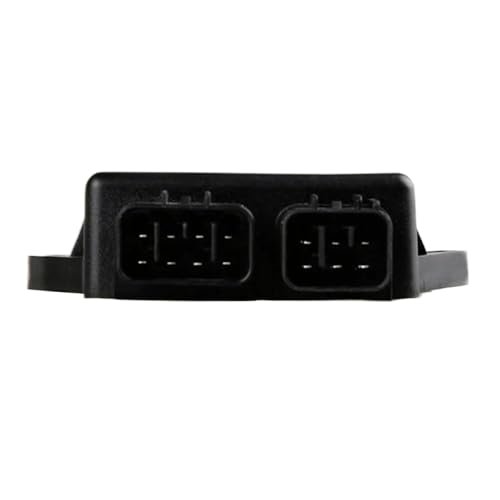

Digital Electronic Ignition ECU Box Unit Compatible with 400cc Motorcycles Including XVS400 Drag 400 4TR XVS 400 Models Racing Ignition System

For those who hit the strip on two wheels, this Digital Electronic Ignition ECU is tailored specifically for 400cc Yamaha models. Unlike typical universal boxes, this unit is a plug-and-play solution focused on enhancing the engine response and spark timing on specific motorcycle platforms. If you run a small-bore drag bike, optimizing spark delivery is vital for corner-to-corner power delivery.

Key features that stand out:
– Compatible with 400cc XVS400 Drag 400 4TR XVS 400 motorcycles for integration
– Designed for racing and performance tuning to enhance engine response and power delivery
– Features a digital electronic ignition system for precise spark timing and improved efficiency
– Compact and ECU box unit built to withstand high-performance riding conditions
– Easy plug-and-play installation with no complex wiring or modifications required

Pros:
– Direct fit and installation for specific motorcycle models.
– Provides precision timing for increased power delivery in motorcycle drag racing.
– Compact design is suitable for bike chassis constraints.

Cons:
– Limited applicability only to certain 400cc Yamaha motorcycles.

Best for: Motorcycle drag racers seeking a direct-fit performance upgrade for compatible Yamaha models.

Expert Opinion: The plug-and-play aspect is a massive time saver. For motorcycle enthusiasts, getting accurate spark timing without major custom wiring changes is a huge advantage.

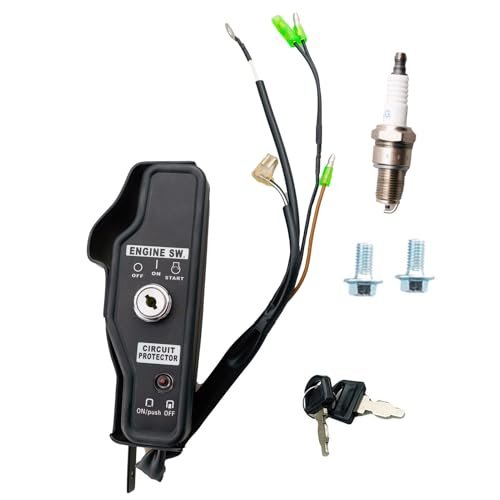

HZ Ignition Switch Control Box Compatible with Harbor Freight Predator 420cc Engine and Power Equipment

While this HZ Ignition Switch Box isn’t a high-performance timing box, it is essential for pit vehicles, tow rigs, or specialized racing classes that utilize utility engines like the Predator 420cc. It provides a reliable key switch, which is necessary for starting and critical for safety shut-down procedures. Its main benefit is its broad compatibility across many popular utility engines, replacing worn-out or broken factory switches.

Key features that stand out:
– This ignition switch assembly with key is OEM part from the original manufacturer.
– Fits Harbor Freight Predator 420cc 13hp horizontal engine and power equipment.
– Replaces ignition control key switch box for Honda GX390 GX340 GX270 GX240 13hp 11hp 9hp 8hp engines used on many power equipment.
– Comes with 2 mounting bolts and 1 pcs spark plug for the need of regular maintenance.

Pros:
– Highly versatile replacement part for popular utility engines.
– Crucial component for reliable start-up and kill function.
– Includes maintenance extras like a spark plug.

Cons:
– This unit serves as a switch/kill box, not a performance ignition timing controller.

Best for: Maintaining reliability and safety on support equipment or engines used in specialized kart/mini drag classes.

Expert Opinion: Don’t overlook the reliability of your support equipment. A failed ignition switch on your golf cart or generator can ruin a race weekend. This box ensures your essential ancillary equipment stays running smoothly.

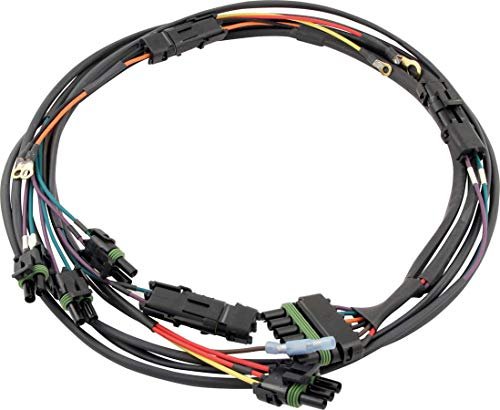

QuickCar Racing Products 50-2034 Single Box Dual Trigger Ignition Harness

In drag racing, clean wiring is power. The QuickCar 50-2034 harness is designed to simplify the complex task of wiring a high-performance ignition system. This cable assembly is built to handle the demands of a single ignition box with dual trigger inputs, which is often necessary for advanced timing controls, such as crank and cam synchronization or magnetic pickup inputs. Its robustness helps prevent electrical noise and cross-talk, which can be devastating to race consistency.

Key features that stand out:
– Item Package Dimension: 9.9L x 8.2W x 2.4H inches
– Item Package Weight – 1.105 Pounds
– Item Package Quantity – 1
– Product Type – CABLE ASSEMBLY

Pros:
– Simplifies the wiring process significantly.
– High-quality insulation and materials designed for racing environments.
– Supports dual-trigger setups for advanced timing control.

Cons:
– Requires careful planning to ensure the cable lengths meet your specific mounting location needs.

Best for: Racers setting up a dedicated, clean, and reliable high-performance ignition system.

Expert Opinion: A good harness is non-negotiable. Using a pre-built assembly like the 50-2034 reduces the chance of installer error and ensures signal integrity for your best ignition box for drag racing unit.

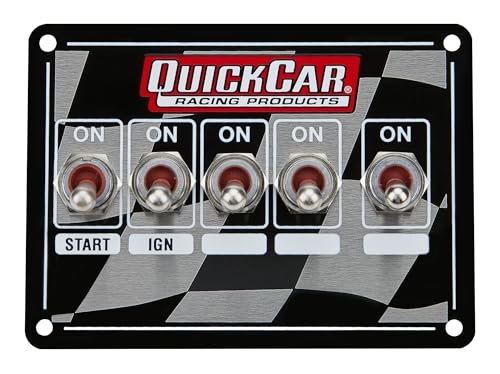

QuickCar Racing Products 50-1714 Single Box Dual Trigger Ignition Control Panel

The cockpit control panel is where the driver interacts directly with the vehicle’s electrical system, and the QuickCar 50-1714 excels here. This dash-mount switch panel provides essential controls in an organized, easy-to-reach location. Featuring toggles for essential functions like the fuel pump and ignition, and a momentary toggle often used for the starter, it’s a necessary component for safely and efficiently operating a race car.

Key features that stand out:
– Switch Panel, Dash Mount
– 4-1/8 x 3 in
– 4 Toggles / 1 Momentary Toggle
– Checkered, Kit
– Fit type: Vehicle Specific

Pros:
– Centralized and organized control for critical systems.
– Momentary switch is ideal for starter or push-to-talk applications.
– Dash-mount design is race-ready and highly visible.

Cons:
– Requires a suitable dash location for mounting the panel securely.

Best for: Drag racers needing a professionally organized cockpit switchboard for ignition and auxiliary systems.

Expert Opinion: The distinction between the toggles (on/off) and the momentary switch (push/release) is critical for safety and speed. This panel gets the layout right for competitive use.

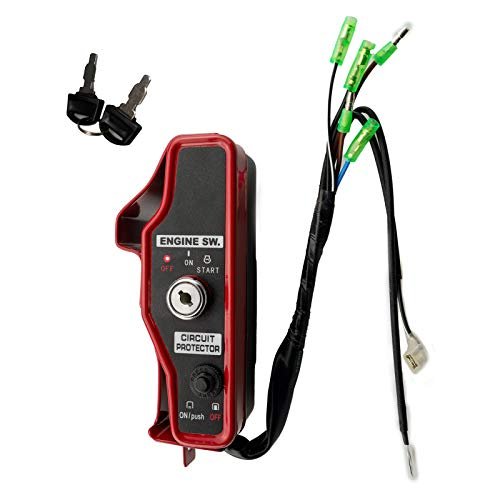

HZ Ignition Switch Control Box with Key for Honda GX610 GX620 GX670 Engines

Similar to the 420cc switch box, this HZ unit targets the larger, higher horsepower Honda GX series utility engines (18HP to 24HP). These engines are often found powering large support equipment or occasionally in highly regulated, sealed-engine drag racing classes. Reliability is paramount here, and this control box ensures dependable starting and includes the critical safety kill switch function.

Key features that stand out:
– ignition switch box for Honda GX610 18HP engine
– Ignition key switch box for Honda GX620 20HP engine
– Ignition switch control box with key for Honda GX670 24HP engine
– High quality Honda GX 610 GX620 GX670 ignition control switch box with key.
– Come together with two pcs spark plugs for the convenience of regular maintenance of your Honda GX620 or GX670 motor.

Pros:
– Direct replacement for high-HP Honda utility engines.
– Includes essential spark plugs for maintenance.
– Reliable start/kill switch mechanism.

Cons:
– Not suitable for mainstream V8 or high-cylinder count racing motors.

Best for: Owners of large support equipment or racers using these specific Honda GX series engines who require reliable replacement parts.

Expert Opinion: If you use the Honda GX series for anything, especially for power generation at the track, having a spare control box and the included spark plugs is invaluable for preventing downtime.

Comparison Short Insights: Choosing the Right Components

Selecting the right ignition components for drag racing requires understanding the role each part plays.

For Maximum Performance Control, the MSD 4224 Programmable MC4 is the undisputed top contender among traditional ignition boxes reviewed here. Its PC programmability and boost retard curves offer precise tuning that general-purpose boxes simply cannot match. If you are serious about controlling individual cylinder timing, this is the way to go.

For System Reliability and Installation, the QuickCar products (Bracket, Harness, and Control Panel) are vital. The QuickCar Racing Products Ignition Box Bracket ensures your delicate electronics are isolated from chassis vibration, while the 50-2034 Harness provides clean signal paths. The 50-1714 Control Panel offers the organizational structure required for the driver to manage essential systems quickly.

If you are involved in Specialized Drag Racing or Support Equipment, the replacement HZ Ignition Switch Control Boxes (for Predator/Honda GX series) and the Digital Electronic Ignition ECU Box (for specific 400cc motorcycles) address niche reliability needs. These are essential for the specific applications they serve but do not offer the multi-cylinder timing control needed for standard V8 or V6 drag cars.

The best ignition box for drag racing setup involves integrating all these components: a robust control box (MSD), secured with a reliable bracket (QuickCar), wired with a clean harness (QuickCar), and operated through a functional switch panel (QuickCar).

Final Verdict: Building Your Drag Racing Ignition System

Deciding on the best ignition box for drag racing depends entirely on your application and budget.

For the Racer Seeking Absolute Precision and Control: Go directly for the MSD 4224 Programmable MC4. It offers the highest level of tunable performance, particularly when dealing with boost, and it is built specifically for competitive drag racing demands. This is where your performance budget should be spent.

For the Racer Prioritizing Cockpit Organization and Safety: The QuickCar Racing Products 50-1714 Control Panel is an essential upgrade. Having your ignition, fuel pump, and accessories labeled and controlled in a dedicated, heavy-duty switch panel minimizes confusion and response time in the cockpit.

For the Budget-Conscious Racer or Utility Vehicle Owner: Focus on reliability components. Ensure your control boxes are securely mounted using the QuickCar Ignition Box Bracket, and if you run specific utility engines, the HZ Switch Control Boxes provide cost-effective reliability and critical safety functionality.

Best Ignition Box For Drag Racing FAQ

What is the primary difference between a standard ignition system and a best ignition box for drag racing?

A standard street ignition system is designed for broad efficiency and basic engine function. A performance ignition control box, like the MSD 4224, is designed for high RPM stability, precise timing control under load, and often includes advanced features such as rev limiters, multi-step timing retards (for nitrous or boost), and two-step launch control to ensure peak consistency and starting line performance.

How important is a reliable rev limiter in drag racing?

The rev limiter is exceptionally important. In bracket racing, a consistent, predictable rev limiter (often a two-step limiter used during the launch) ensures the engine launches at the exact same RPM every time, which is critical for consistency (dial-in) and minimizing wasted reaction time. A high-quality ignition box maintains an extremely sharp, repeatable spark cut-off.

Do I need a programmable ignition box if I only run naturally aspirated?

While not as critical as in boosted applications, a programmable box still offers major benefits for naturally aspirated engines. You can fine-tune the advance curve based on track temperature and altitude, adjust the RPM drop for shifts, and set up highly accurate launch control timing. If consistency is your goal, programmability is a significant asset.

What does “dual-trigger ignition harness” mean, and why would I need one?

A dual-trigger system means the ignition box receives two separate timing signals, typically one from the crankshaft (for position) and one from the camshaft (for synchronization). This setup is required for sequential injection and highly accurate individual cylinder timing. The QuickCar 50-2034 Single Box Dual Trigger Ignition Harness provides the necessary organized wiring infrastructure for this complexity.

How does boost retard work in an ignition control box?

Boost retard is a safety and performance feature. When the manifold pressure sensor detects increasing boost (psi), the ignition box automatically pulls timing out of the engine. This prevents detonation (engine damaging pre-ignition) at high pressures while allowing the engine to run maximum efficient timing at lower boost levels. Units like the MSD 4224 are built with highly sophisticated boost retard curves.

Can I install one of these systems myself?

Yes, many racers perform the installation themselves, but high-end boxes (like the MSD 4224) require specialized knowledge of engine timing, sensor setup, and tuning software. Basic components like the QuickCar bracket or harness are simpler, but for the performance control boxes, it is highly recommended to consult wiring diagrams and ensure accurate setup to prevent engine damage or timing errors.
