Best Pioneer AVIC Wiring Harness for 2004 Corvette Installation

If you’re like me, giving your 2004 Corvette an audio upgrade with a modern Pioneer AVIC head unit is a project that feels both exciting and a little daunting. I’ve been there, staring at a tangle of wires, wondering if I’ve got the right stuff to make this sleek new system sing in my C5. The key to a smooth, headache-free installation? The best Pioneer AVIC wiring harness for your 2004 Corvette installation. It’s not just about getting power; it’s about seamlessly integrating your new tech with your classic ride without cutting factory wires or causing electrical gremlins. Having gone through this process myself, I know how crucial it is to pick a harness that fits your specific Pioneer AVIC model and works with your Corvette’s unique wiring. I’ve dug deep, looked at several popular options, and put together this guide to help you find the right harness to get your AVIC system up and running in your ‘Vette.

IMAGE	PRODUCT NAME	AMAZON LINK
	NuIth 16 Pin Car Radio Wiring Harness for Pioneer AVIC…	View on Amazon
	16 Pin Pioneer Wiring Harness Radio Stereo Connector for…	View on Amazon
	RED WOLF Pioneer Radio Stereo Wiring Harness Connector Amp…	View on Amazon
	Wire Harness Replacement for Pioneer Select AVIC -Series…	View on Amazon
	16 Pin Radio Wiring Harness Stereo Replacement,Stereo…	View on Amazon

Product Reviews: Finding Your Perfect Pioneer AVIC Harness

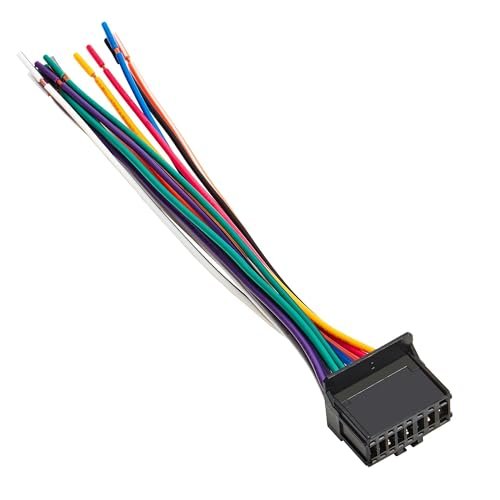

NuIth 16 Pin Car Radio Wiring Harness for Pioneer AVIC…

This NuIth 16-pin wiring harness is a solid contender for anyone looking to replace a damaged or lost Pioneer stereo harness, or for installing a new aftermarket unit. It’s designed as a direct replacement for many Pioneer AVH-P, AVIC-X/Z, and DEH series radios, which covers a good range of AVIC units you might be considering for your 2004 Corvette. What I really appreciate is the standard color coding, which makes connecting wires much less of a guessing game – essential when you’re working in the tight confines of a Corvette dash. The build quality, with durable ABS plastic and high-quality copper core, suggests it’s made to last, providing reliable conductivity for years. Plus, the pre-stripped ends save you a step, speeding up your installation. Just make sure to double-check its specific Pioneer model compatibility with your AVIC unit before buying.

Key features that stand out:
– Broad Pioneer AVIC compatibility for many AVH-P, AVIC-X/Z models.
– Standard color-coded wiring for straightforward installation.
– Durable ABS plastic and copper core for lasting performance.
– Pre-stripped wire ends to simplify connections.

Pros:
– Offers wide compatibility with various Pioneer AVIC and AVH models.
– Standard color coding significantly eases the wiring process.
– Made with quality materials for long-term reliability.
– Pre-stripped wires save time during installation.

Cons:
– Requires careful checking to ensure compatibility with your specific Pioneer AVIC unit.

Best for: DIY installers seeking a reliable, general-purpose Pioneer AVIC harness with good compatibility and easy-to-follow wiring.

Expert Opinion: This harness is a go-to for its straightforward design and broad, though not universal, Pioneer compatibility. The pre-stripped, color-coded wires are a huge plus for simplifying installations, especially for those new to car audio wiring in a 2004 Corvette.

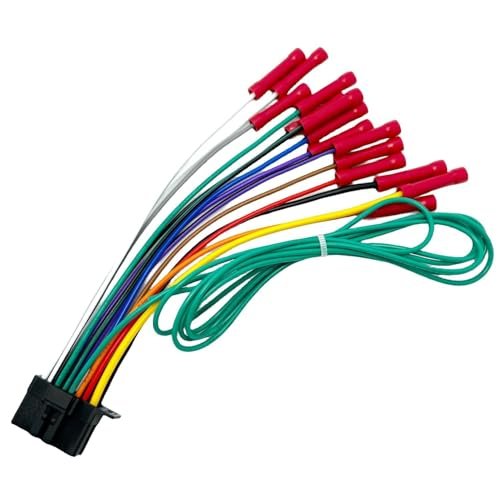

16 Pin Pioneer Wiring Harness Radio Stereo Connector for…

When you’re installing an aftermarket Pioneer stereo in your 2004 Corvette, this 16-pin harness aims to make the job easier, especially if your original harness is no longer viable. One distinct feature here is the inclusion of a GREEN cable specifically for tapping into the ignition for a stable 12-volt power supply, which is critical for ensuring your radio turns on reliably. This harness boasts compatibility with a wide array of Pioneer DEH, AVH, AVIC (including the AVIC-6100NEX), FH, MVH, and SPH units, making it a versatile choice. It also comes bundled with butt connectors, which is a thoughtful addition that helps you achieve quick and secure wire connections. The standardized color codes and pre-stripped wiring mean you can jump straight into the installation without needing to cut factory wires. Just be mindful of the fuse location on your Pioneer radio, as this harness works with units that have the fuse on the side, not the bottom.

Key features that stand out:
– Dedicated GREEN ignition wire for reliable 12V power.
– Wide compatibility across Pioneer DEH, AVH, AVIC (e.g., AVIC-6100NEX) series.
– Includes butt connectors for secure, solder-free connections.
– Standardized color codes and pre-stripped wires for plug-and-play installation.
– Durable PVC jacket/ABS shell for protection and corrosion resistance.

Pros:
– Comes with essential butt connectors, simplifying the wiring process.
– The dedicated ignition wire helps resolve common power issues.
– Broad compatibility covers many Pioneer AVIC and other models.
– Designed for durability and easy, direct installation.

Cons:
– Not compatible with Pioneer radios where the fuse is located on the bottom.

Best for: Installers who appreciate included accessories like butt connectors and a dedicated ignition wire for a hassle-free Pioneer AVIC installation.

Expert Opinion: This harness stands out by providing both the harness and butt connectors, making it a more complete package for a DIY install. The green ignition wire feature addresses a common pain point, ensuring your Pioneer AVIC in the 2004 Corvette gets consistent power.

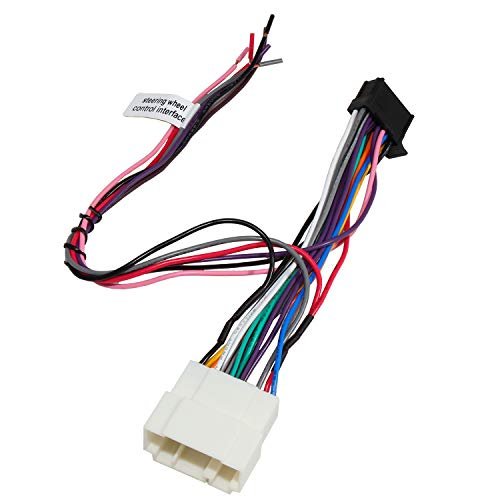

RED WOLF Pioneer Radio Stereo Wiring Harness Connector Amp…

The RED WOLF wiring harness is presented as a connector for installing Pioneer radios, including AVIC-X9310BT, into a vehicle. It emphasizes easy installation with included Steering Wheel Control (SWC) wires and a direct color-match to your factory wiring, aiming to avoid cutting any factory wires. However, a critical point for 2004 Corvette owners is the disclaimer: “Please noted that this product cannot match the factory amplification system.” This is a significant consideration, as many 2004 Corvettes came with a factory Bose amplification system. While it lists compatibility with many Honda and Acura vehicles, it does not list the Corvette. This implies that while it’s a Pioneer-compatible harness, it’s not a direct, plug-and-play solution designed specifically for a 2004 Corvette’s complex wiring, especially if you have a factory amp. It would require significant modification or an external adapter for a Corvette installation.

Key features that stand out:
– Designed for Pioneer AVIC models like AVIC-X9310BT.
– Includes Steering Wheel Control (SWC) wires.
– Color-matched wiring for ease of connection.
– Aims to avoid cutting factory wires in general applications.

Pros:
– Includes wires for Steering Wheel Controls, which is a great feature for retaining factory functions.
– Color-matched wires can simplify the connection process.

Cons:
– Does not support factory amplification systems, which is a major drawback for many 2004 Corvettes.
– Not specifically designed for the 2004 Corvette, requiring significant adaptation.

Best for: General Pioneer installations in compatible vehicles without a factory amplified system, where SWC retention is desired. Not recommended as a direct fit for a 2004 Corvette without considerable modification and additional interfaces.

Expert Opinion: While it mentions Pioneer AVIC compatibility and SWC retention, the complete lack of Corvette-specific vehicle compatibility and, more importantly, the explicit warning about not supporting factory amplification, makes this a challenging choice for a 2004 Corvette. You’d need a separate interface to retain your factory amp and possibly to adapt it to the Corvette’s harness.

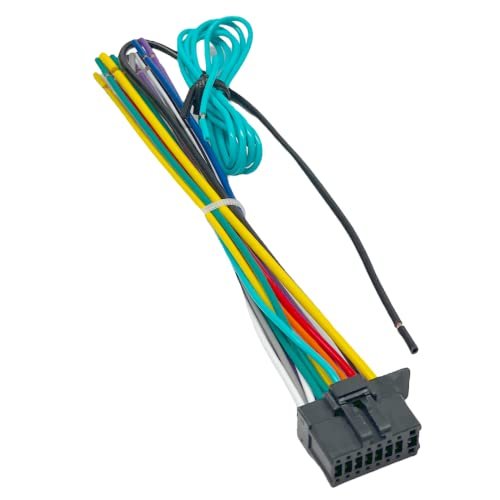

Wire Harness Replacement for Pioneer Select AVIC -Series…

This wiring harness focuses heavily on providing extensive compatibility with a wide range of Pioneer AVIC models, including many from the NEX, F-series, W-series, X-series, and Z-series. If your Pioneer AVIC unit is one of the many listed, this harness aims to be a straightforward solution. What truly helps with a clean install is the included color wiring diagram. No more guessing or searching online for pinouts; having it right there in the box is a huge time-saver. The harness is constructed with 100% pure copper wires, ensuring optimal conductivity and durability, which is vital for maintaining audio quality and system stability. While it doesn’t list specific vehicle compatibility like the RED WOLF product, its strength lies in its broad Pioneer AVIC head unit support, making it a strong contender if you’ve already chosen a specific AVIC model for your 2004 Corvette.

Key features that stand out:
– Extensive compatibility with numerous Pioneer AVIC models (NEX, F, W, X, Z series).
– Color wiring diagram INCLUDED for simplified installation.
– Constructed with 100% pure copper wires for excellent conductivity.

Pros:
– Unmatched compatibility with a vast range of Pioneer AVIC head units.
– The included wiring diagram is incredibly helpful for DIYers.
– High-quality pure copper wires ensure reliable electrical connections.

Cons:
– Doesn’t offer vehicle-specific wiring (like a Corvette adapter), so a separate vehicle interface is still likely needed.

Best for: Owners of 2004 Corvettes installing a specific Pioneer AVIC model from the long list of compatible units, especially those who appreciate clear wiring diagrams and premium wire quality.

Expert Opinion: This harness is a dream for those with a specific Pioneer AVIC model in mind, thanks to its exceptional compatibility and the inclusion of a vital color wiring diagram. The pure copper wires are a nice touch for peace of mind regarding signal integrity when installing in a 2004 Corvette.

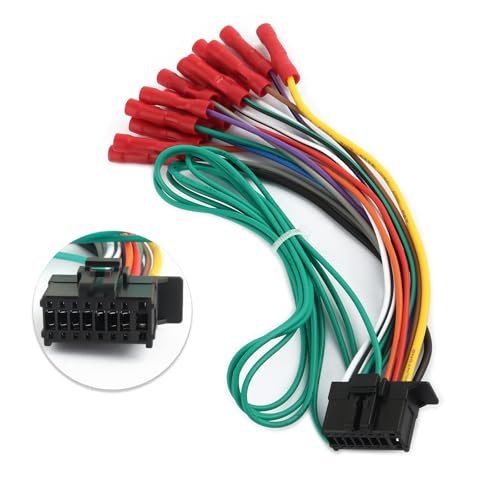

16 Pin Radio Wiring Harness Stereo Replacement,Stereo…

This 16-pin wiring harness prides itself on premium construction, promising reliable performance and longevity while minimizing the risk of electrical issues. It’s built to offer a smooth installation process for your aftermarket Pioneer stereo. Similar to some other options, it boasts wide compatibility with a range of Pioneer DEH, AVH, AVIC (including AVIC-6100NEX and others), FH, MVH, and SPH radio models. Crucially, it highlights its design for double DIN radios, which is often the form factor for Pioneer AVIC units you’d consider for a 2004 Corvette upgrade. The 16-pin design aims to simplify the wiring process, providing a direct replacement for the original wiring harness to eliminate the need for extensive modifications or additional adapters on the Pioneer side of the connection.

Key features that stand out:
– Premium construction for durability, reliability, and minimized electrical risks.
– Wide compatibility with Pioneer DEH, AVH, AVIC, FH, MVH, SPH models.
– Specifically designed for double DIN radios, common for Pioneer AVIC units.
– Simplified 16-pin design for quick installation.

Pros:
– High-quality construction ensures long-term performance and safety.
– Broad Pioneer compatibility means it’s likely to fit your AVIC model.
– Focus on double DIN radios aligns well with many AVIC installations.
– Aims for a direct replacement on the Pioneer side, simplifying that part of the job.

Cons:
– While great for the Pioneer side, it still needs a Corvette-specific interface.

Best for: 2004 Corvette owners installing a double DIN Pioneer AVIC unit who prioritize high build quality and broad compatibility with their chosen head unit.

Expert Opinion: This harness offers a compelling blend of quality construction and extensive Pioneer model compatibility. The emphasis on double DIN radios is particularly relevant for most Pioneer AVIC installations in a 2004 Corvette, making it a strong, reliable choice.

Helpful Comparison Insights

When choosing the Best Pioneer AVIC Wiring Harness for your 2004 Corvette Installation, it’s clear there are different approaches. For sheer Pioneer AVIC model compatibility, the “Wire Harness Replacement for Pioneer Select AVIC -Series…” stands out, covering a massive list of AVIC units. It’s a great pick if you’re sure about your specific AVIC model.

If you’re looking for a more complete package with helpful installation aids, the “16 Pin Pioneer Wiring Harness Radio Stereo Connector for…” is a strong contender, bundling butt connectors and featuring a dedicated green ignition wire. This kind of attention to installation details can save you time and frustration. The NuIth harness also offers pre-stripped, color-coded wires, making general hookups straightforward.

Build quality is important for long-term reliability. Both the NuIth and “16 Pin Radio Wiring Harness Stereo Replacement, Stereo…” emphasize durable materials and premium construction, which is reassuring when dealing with your Corvette’s electrical system. The latter also specifically mentions double DIN radio compatibility, which is relevant for many AVIC units.

However, the elephant in the room for a 2004 Corvette is vehicle-specific integration, especially with the factory Bose amplifier. The RED WOLF Pioneer Radio Stereo Wiring Harness Connector Amp… explicitly states it “cannot match the factory amplification system.” This is a critical warning. While the other harnesses focus on the Pioneer side of the connection, none of them directly provide a plug-and-play solution for the 2004 Corvette’s factory harness and factory amplifier without an additional vehicle interface module (like a Metra or PAC adapter). This means that while these harnesses are excellent for connecting to your Pioneer AVIC, you’ll still need a separate interface to properly integrate with your Corvette’s wiring and retain functions like the factory amplifier and potentially steering wheel controls. Always prioritize purchasing a Corvette-specific adapter harness (which would then connect to one of these Pioneer-specific harnesses) to ensure proper power, ground, speaker, and data connections in your 2004 Corvette.

Final Verdict: Powering Your Corvette’s Pioneer AVIC

Choosing the best Pioneer AVIC wiring harness for your 2004 Corvette installation isn’t just about grabbing the first one you see. It’s about careful consideration of your specific Pioneer AVIC model, the harness’s build quality, and most critically, how it will integrate with your C5’s unique factory wiring, especially if you have a Bose amplified system.

For those prioritizing broad compatibility with a wide range of Pioneer AVIC head units and who appreciate a clear wiring diagram, the Wire Harness Replacement for Pioneer Select AVIC -Series… is a standout choice. Its pure copper wires also offer a high-quality foundation.

If you’re a DIY enthusiast who values convenience and comprehensive installation aids, the 16 Pin Pioneer Wiring Harness Radio Stereo Connector for…, with its included butt connectors and dedicated ignition wire, will likely make your installation smoother. The NuIth harness also provides excellent basic features for ease of use.

Ultimately, remember that for your 2004 Corvette, these Pioneer-specific harnesses are just one piece of the puzzle. To truly achieve a seamless, plug-and-play installation while retaining factory features like your amplifier (if present) and steering wheel controls, you will almost certainly need to pair one of these harnesses with a Corvette-specific vehicle interface module. This module acts as the bridge between your car’s factory harness and the aftermarket Pioneer harness, translating signals and managing power properly. Always double-check your specific AVIC model’s requirements and your Corvette’s existing audio setup before making a final decision.

Comprehensive FAQ for Pioneer AVIC Wiring Harness in 2004 Corvette

Q1: Why do I need a specific wiring harness for my Pioneer AVIC in a 2004 Corvette?
A1: A specific wiring harness, often in conjunction with a vehicle interface module, is crucial because your 2004 Corvette’s factory stereo wiring isn’t plug-and-play with an aftermarket Pioneer AVIC head unit. The harness translates the wiring connections, ensuring your new stereo gets the correct power, ground, and speaker signals without cutting into your car’s original wiring, preserving its integrity.

Q2: Will these Pioneer AVIC wiring harnesses work with my 2004 Corvette’s factory amplifier (e.g., Bose system)?
A2: Most of the Pioneer AVIC wiring harnesses reviewed here are designed to connect to the Pioneer head unit itself, not directly to your 2004 Corvette’s factory wiring or amplifier. To retain your factory amplifier, you will almost certainly need an additional Corvette-specific vehicle interface adapter (like those from Metra or PAC Audio). This adapter converts the aftermarket stereo’s output to a signal your factory amp can understand. The RED WOLF product explicitly states it cannot match factory amplification, so be particularly wary of that one if you have a factory amp.

Q3: Is installation difficult for a DIYer installing a Pioneer AVIC wiring harness in a 2004 Corvette?
A3: Installing the Pioneer AVIC wiring harness itself usually involves matching color-coded wires, which is generally manageable for a DIYer with basic tools and knowledge. However, the overall installation in a 2004 Corvette can be more complex due to the tight dash space, specific dash kit requirements, and the need for a separate vehicle interface module to integrate with the car’s existing systems (like the factory amplifier, OnStar, or steering wheel controls). Taking your time and following diagrams is key.

Q4: What should I check before buying a Pioneer AVIC wiring harness for my 2004 Corvette?
A4: First, confirm the exact model of your Pioneer AVIC head unit to ensure the harness is compatible. Second, identify if your 2004 Corvette has a factory amplifier (like the Bose system) or steering wheel controls you wish to retain. This will determine if you need an additional vehicle interface module. Also, check reviews for ease of installation and wire quality.

Q5: Do these Pioneer AVIC wiring harnesses retain my steering wheel controls in my 2004 Corvette?
A5: Typically, the Pioneer-specific wiring harnesses themselves do not directly retain your 2004 Corvette’s steering wheel controls. For this functionality, you’ll need a separate steering wheel control interface module (often integrated into the larger vehicle interface adapter mentioned in Q2). This module connects between your car’s wiring, the Pioneer AVIC head unit, and the wiring harness, allowing you to program and use your factory steering wheel buttons with your new stereo.

Q6: What’s the difference between a 16-pin harness and others, and why is it common for Pioneer AVIC?
A6: A 16-pin harness is a common connector standard for many aftermarket car stereos, including numerous Pioneer AVIC models. The “16-pin” refers to the number of individual wires or connections it provides (e.g., power, ground, speaker wires, remote turn-on, etc.). While not all Pioneer units use a 16-pin connector, it’s a very prevalent type, offering enough connections for basic to moderately complex stereo installations. Other harnesses might have more or fewer pins depending on the specific head unit’s features (e.g., dedicated connections for backup cameras, video output, etc.).

Q7: Can I just cut and splice the wires if I don’t get a Pioneer AVIC wiring harness?
A7: While technically possible, it is highly discouraged to cut and splice wires directly into your 2004 Corvette’s factory wiring harness. This can lead to incorrect connections, electrical shorts, damage to your new Pioneer AVIC unit or car’s electronics, and can void warranties. Using a proper wiring harness and vehicle interface module is safer, more reliable, and preserves your vehicle’s resale value by keeping the factory wiring intact.
