Best Practices for Wiring an Electronic Fuel Pump

Alright, let’s talk about getting your electronic fuel pump wired up right. If you’re anything like me, you know that a properly functioning fuel system is the heart of any reliable ride, whether it’s your daily driver, a classic car project, or even a boat. I’ve been through my fair share of installs, and I can tell you that electronic fuel pump wiring isn’t just about making connections; it’s about ensuring safety, preventing performance issues like voltage drop, and extending the life of your pump. There’s a lot of talk out there, but this guide is based on real-world experience, helping you choose the right components and follow the best practices for wiring an electronic fuel pump. We’ll dive into some top-notch wiring kits, reliable 12V fuel pumps, and even smart controllers to give you the confidence that your fuel pump installation will be solid. Getting your fuel pump’s electrical system right means consistent pressure, optimal engine performance, and peace of mind.

IMAGE	PRODUCT NAME	AMAZON LINK
	Electric Fuel Pump Relay Fuel Pump Wiring Harness Kit 40…	View on Amazon
	Revolution Electronics Electric Fuel Pump Controller….	View on Amazon
	ENGINEMAN Micro Electric Gasoline Fuel Pump Universal with…	View on Amazon
	Threlaco 2 Pcs Electric Fuel Pump Kit 12v Universal Low…	View on Amazon
	Leadrise 12V Electric Universal Inline Universal Low…	View on Amazon
	Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Kit…	View on Amazon
	Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Kit…	View on Amazon
	Electric Fuel Pump 12v Electric Transfer Universal Low…	View on Amazon
	CarBole Micro Electric Gasoline Fuel Pump Universal 5/16…	View on Amazon
	Universal Electric Fuel Pump Kit for All 12V Cars Trucks…	View on Amazon

Product Reviews: Our Top 10 Picks for Electronic Fuel Pump Wiring & Components

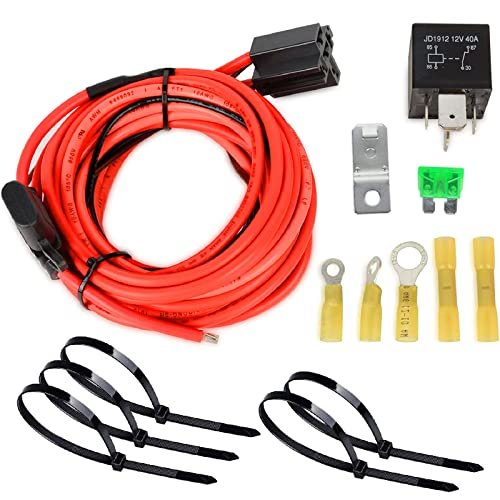

Electric Fuel Pump Relay Fuel Pump Wiring Harness Kit 40 Amp

This wiring harness kit is a fantastic starting point for anyone looking for a reliable and robust electrical setup for their fuel pump. Designed for universal 12V systems, it capably handles devices up to 40 amps continuously, which covers most high-performance fuel pumps. What really stands out to me is its heavy-duty waterproof relay and the smart integrated plug-and-play fuse design. This combination not only ensures greater safety by preventing overloads that could damage your vehicle’s electrical system but also simplifies the installation process significantly. It’s built to ensure your fuel pump consistently receives the voltage it needs, preventing those pesky voltage drops that can lead to inconsistent fuel delivery.
– Universal for 12V System, up to 40 Amps continuous
– Ensures required voltage to fuel pump, preventing overloads and electrical system damage
– Includes 40 Amp heavy-duty waterproof relay, relay base, inline waterproof fuse holder, 30 Amp fuse, mounting screws, terminals, and cable ties
– Integrated plug-and-play fuse design for enhanced safety and waterproofing
– Simple, plug-and-play installation

Pros:
– Comprehensive kit with all necessary components for a secure circuit
– Heavy-duty and waterproof relay for durability in various conditions
– Integrated fuse design enhances safety and simplifies installation
– Effectively prevents voltage drops and system overload
Cons:
– Requires some basic understanding of wiring for optimal setup
Best for: Universal 12V systems needing a robust and safe relay setup for an electronic fuel pump, especially high-draw models.

User feedback summary: Users appreciate the complete package and the heavy-duty components, often mentioning the clear instructions make it straightforward even for those with limited electrical experience. The waterproof features are also frequently praised.

Revolution Electronics Electric Fuel Pump Controller

For those upgrading a classic car or seeking advanced safety features, the Revolution Electronics controller is a standout. This unit intelligently monitors your tach signal, meaning your fuel pump only runs when the engine is actually operating. This is a crucial safety feature I always recommend for any electronic fuel pump installation. Another excellent feature is the 3-second prime on initial key-on, which pre-fills your fuel system and carburetor bowls for instant starts, especially handy on older vehicles. It’s compact, fully potted for protection against the elements, and proudly Made in USA, offering significant peace of mind about its quality and reliability.
– Monitors tach signal – pump operates only when engine is running (safety feature)
– Turns on electric fuel pump for 3 seconds on initial key-on to prime the system
– Ideal for classic cars and trucks upgrading from mechanical to electric fuel pumps
– Works with inductive and square-wave tach signals, or connects to negative coil for vehicles without a tach
– Includes internal self-resetting 7 amp fuse and 15 feet of 16 gauge wire to pump
– Compact (2×1.5×1 inches), fully potted, and Made in USA

Pros:
– Excellent safety feature (pump off when engine stops)
– Primes fuel system for easy and consistent starts
– Versatile for various tach signals and higher amp pumps (with an external relay)
– Durable, potted design for longevity
Cons:
– Requires a tach signal or coil connection, which might be an extra step for some vehicles
– Internal fuse is 7A, so higher amperage pumps will require an additional external relay
Best for: Classic car enthusiasts upgrading to an electric fuel pump, or anyone prioritizing advanced safety and an automatic priming function.

User feedback summary: User feedback summary: Many users highlight its reliability and the peace of mind offered by the engine-off safety feature. The priming function is also a popular benefit, making cold starts much smoother. Some noted the need for an external relay for their high-flow pumps.

ENGINEMAN Micro Electric Gasoline Fuel Pump Universal with Complete Kit

The ENGINEMAN pump is a robust solution for carbureted V8 engines and other high-demand setups, delivering a strong 35 GPH at 4-7 PSI. I’ve seen firsthand how vital optimized pressure is for preventing issues like vapor lock, particularly in warmer climates, and this pump is designed to maintain that consistent pressure. What truly sets this product apart is the complete installation kit, which includes everything from the mounting bracket and fuel filter to the 6.56FT fuel line hose and clamps. This “all-in-one” approach makes DIY installation incredibly straightforward. Its vibration-dampening construction and copper-wound motor also ensure quiet and consistent operation.
– Delivers 35 GPH at 4-7 PSI, optimized for high-demand carburetor systems (V8 engines)
– Complete installation kit: mounting bracket, fuel filter, 6.56FT fuel line hose, clamps, wiring (red/black), and detailed instructions
– Universal 12V compatibility for gasoline vehicles, lawnmowers, generators, boats, and forklifts
– Mounting bracket design helps retain fuel internally to prevent vapor lock and ensure instant ignition readiness
– Vibration-reduced operation with a copper-wound motor (1.0-2.0A draw), minimizing noise
– Exclusively for pure gasoline applications (Not recommended for E85, Ethanol, Methanol, Race Fuel, Water)

Pros:
– High flow rate and pressure suitable for demanding carbureted engines
– Comprehensive installation kit makes DIY setup quick and easy
– Universal fit for a wide range of 12V gasoline applications
– Quiet and stable operation due to vibration dampening
– Optimized pressure helps prevent vapor lock
Cons:
– Not compatible with E85 or other alternative fuels
– Requires specific 45° upward mounting for optimal fuel retention
Best for: Owners of carbureted vehicles (especially V8s) or other gasoline engines needing a complete, reliable, and easy-to-install fuel pump system.

User feedback summary: User feedback summary: Users often praise the comprehensive kit and the ease of installation, noting that it saves time and extra trips to the store. Its consistent performance for carbureted engines and reduced noise are also frequently mentioned positive points.

Threlaco 2 Pcs Electric Fuel Pump Kit 12v Universal Low Pressure

Getting two pumps in one package offers incredible value, whether you need a spare for the road or have multiple projects. These Threlaco pumps are reliable workhorses, providing 4-7 PSI, which is ideal for a variety of carburetor applications. The kit thoughtfully includes two fuel filters and eight hose clamps, ensuring you have the necessary components for a clean setup. Their compact size and standard 5/16″ connections make them highly adaptable, fitting into cramped engine bays with ease. The transparent filter housing is a practical touch, allowing for quick visual checks of fuel clarity.
– Package includes 2 universal 12V (4-7psi) electric fuel pumps, 2 fuel filters, and 8 hose clamps
– Model: HEP-02A; Material: copper-clad aluminum; Voltage: 12V; Current: 2A
– Output pressure: 4-7 PSI (0.028-0.048 MPA)
– Portable size, fits 5/16″ oil pipe, with transparent plastic shell and orange inner filter for impurity checks
– Compatible with all 12V cars, trucks, boats, carburetors, lawnmowers, and generators
– Lightweight, quiet operation, easy 2-bolt fixing and 2-wire design

Pros:
– Excellent value with two pumps included for backup or multiple uses
– Comes with necessary filters and clamps, saving extra purchases
– Wide universal compatibility for most 12V carbureted systems
– Compact, lightweight, and quiet operation
– Simple 2-bolt, 2-wire installation
Cons:
– Lower pressure range (4-7 PSI) means it’s exclusively for carbureted systems, not fuel injection
– The “copper-clad aluminum” material might not offer the same long-term durability as pure copper
Best for: DIY enthusiasts or those with multiple carbureted vehicles/equipment needing reliable, low-pressure fuel delivery, or simply desiring a readily available spare pump.

User feedback summary: User feedback summary: Users appreciate the affordability and the convenience of having a spare pump. They often mention the pumps are easy to install and work reliably for their intended low-pressure carburetor applications.

Leadrise 12V Electric Universal Inline Universal Low Pressure Fuel Pump

The Leadrise universal fuel pump is a solid choice for straightforward low-pressure fuel delivery, specifically designed with a built-in check valve to prevent backflow – a small but significant detail for consistent performance. I like its plunger-type fuel supply mechanism which often translates to stronger suction and more stable oil delivery, reducing the chances of fuel starvation. Operating quietly with an output pressure of 2.5-4 PSI, it’s well-suited for various 12V carbureted applications. The ease of installation with its 2-bolt fixing and 2-wire design makes it highly user-friendly, allowing it to function as a booster, standby unit, or primary pump.
– Specifications: Inline Fuel Pump, Output Pressure: 2.5-4 PSI, Voltage: 12 Volt, Flow Rate: 30 GPH, Hose Size: 8 mm (5/16 inch)
– Built-in check valve design to prevent backflow and ensure stable oil supply
– Plunger-type fuel supply way for stronger suction and more stable oil delivery
– Upgrade check valve design reduces pump noise for quiet operation
– Easy to install: 2 bolt fixing, 2 wires design, can be mounted anywhere
– Wide application: Fits all 12V cars, trucks, boats, and generators (Toyota, Ford, Honda, Mazda, etc.)

Pros:
– Built-in check valve is a great feature for consistent, reliable fuel flow
– Plunger-type mechanism provides strong, stable suction power
– Quiet operation compared to many other pumps
– Very easy to install with a simple two-wire, two-bolt setup
– Versatile for a wide range of 12V low-pressure applications
Cons:
– Lower pressure range (2.5-4 PSI) might be too low for some specific carburetor setups needing slightly higher pressure
Best for: Anyone needing a quiet, reliable, and exceptionally easy-to-install low-pressure fuel pump for carbureted engines, especially where backflow prevention is a priority.

User feedback summary: User feedback summary: Users often comment on how quiet this pump is compared to others, and the built-in check valve is a frequently praised feature for preventing common fuel system issues. Its straightforward installation also gets positive mentions.

Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Kit (10ft 10ga Red)

This electric fuel pump wiring harness kit is clearly designed for serious performance and reliability. It features a robust 40 Amp heavy-duty waterproof relay and, critically, uses 10-gauge wire for the main power and fuel pump connections. This thicker gauge wire is essential for preventing voltage drop, especially over the generous 10 feet to the battery and 6 feet to the fuel pump. I can’t stress enough how important properly sized wiring is for electronic fuel pump wiring, as voltage drop directly impacts pump performance and longevity. This kit provides a rock-solid electrical foundation for any high-draw 12V device, not just fuel pumps.
– Comprehensive harness with a 40 Amp relay
– Generous wire lengths: 10 feet 10 gauge Red wire to +12V battery, 6 feet 10 gauge Orange wire to fuel pump, 2 feet 16 gauge Brown wire to 12V trigger switch, 4 feet 16 gauge Black wire to chassis ground
– Heavy-duty waterproof relay and inline waterproof fuse box
– Suitable for any 12V activated device not exceeding a 40 amp continuous amperage draw
– Ideal for high Amp draw applications like cooling fans, water, and fuel pumps
– Package includes 30 Amp fuse, mounting screws, terminals, and connectors

Pros:
– High-quality, heavy-duty 40 Amp relay and thick 10-gauge wiring
– Long wire lengths offer superior flexibility for routing and installation
– Effectively prevents voltage drops to the fuel pump, ensuring optimal performance
– Waterproof components enhance durability in harsh environments
– Versatile for various high-draw 12V applications
Cons:
– Requires careful routing and connection of several wires, potentially more involved than a simple pump swap
Best for: High-performance fuel pumps or other 12V accessories with high amperage draw, where robust wiring and voltage stability are paramount.

User feedback summary: User feedback summary: Users consistently praise the quality and gauge of the wiring, highlighting that it’s much better than cheaper alternatives. The long leads are frequently mentioned as a huge advantage for routing and installation flexibility. Many found it a straightforward install for their high-performance setups.

Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Kit (Clearly Labeled Wires)

This electronic fuel pump relay kit focuses on making installation as straightforward as possible, featuring clearly labeled and color-coded wires alongside an easy-to-follow wiring diagram. This is a huge benefit, especially for DIYers tackling their first fuel pump installation. Beyond ease of use, it’s built with the same critical goal of preventing voltage drops and amperage overloads, ensuring your high-pressure fuel pump gets the consistent voltage it needs for optimal operation. The integrated fuse design within the inline waterproof fuse box is a thoughtful touch, simplifying the setup and enhancing safety.
– Heavy-duty long wires designed to prevent voltage drops and amperage overloads at the fuel pump
– All wires are clearly labeled and color-coded for easy installation
– Includes an easy-to-follow wiring diagram in the package
– Integrated fuse design: fuse inserts gently into the inline waterproof fuse box, safer and more waterproof
– Wire lengths: 10ft 10ga RED to +12V battery, 6ft 10ga ORANGE to fuel pump, 2ft 16ga BROWN to 12V trigger switch, 4ft 16ga BLACK to chassis ground
– Package includes 40 Amp heavy-duty waterproof relay, relay base, fuse holder, 30 Amp fuse, mounting screws, terminals, and connectors

Pros:
– Extremely user-friendly with clearly labeled wires and a helpful wiring diagram
– Integrated fuse design offers a safer and more convenient setup
– Effectively prevents voltage drops, ensuring optimal pump performance and longevity
– Heavy-duty and waterproof components for reliable operation
Cons:
– Like other harness kits, still requires some basic electrical understanding
Best for: DIYers who want a robust wiring solution for their electronic fuel pump but appreciate extra guidance like clear labels and diagrams to ensure a correct and safe installation.

User feedback summary: User feedback summary: The clear labeling and included wiring diagram are frequently highlighted as major benefits, making installation much less intimidating. Users also confirm its effectiveness in stabilizing fuel pump voltage and preventing issues.

Electric Fuel Pump 12v Electric Transfer Universal Low Pressure

This universal low-pressure pump is a reliable, no-frills option for a broad range of 12V carbureted applications. Delivering a consistent 2.5-4 PSI, it’s designed to provide steady fuel flow. A key feature I appreciate is the internal valving to prevent backflow, which helps maintain prime and ensures immediate fuel delivery on startup. Its strong suction capability is vital for reliable fuel feeding, preventing starvation issues. Plus, the peace of mind that comes with an official 2-year warranty is a significant bonus, reinforcing confidence in its durability and performance for your electronic fuel pump wiring setup.
– Output Pressure: 2.5-4 PSI; Input Voltage: 12 Volt
– Inlet & Outlet: 8mm
– Internal valving to prevent backflow
– Strong suction to ensure the fuel feeding of the car is more stable
– Compatible with all 12V cars, trucks, boats, carburetors, lawnmowers, and generators
– 2-Year Official Warranty

Pros:
– Reliable low-pressure fuel delivery for carbureted systems
– Internal check valve is a great feature for consistent fuel flow and priming
– Strong suction power for dependable fuel feeding
– Wide universal compatibility with many 12V vehicles and equipment
– Backed by a 2-year warranty for added assurance
Cons:
– Lower pressure range means it’s exclusively for carbureted systems, not suitable for fuel injection
– Doesn’t include an installation kit, so you’ll need to source fuel line, filter, and clamps separately
Best for: Those seeking a basic, reliable, and warrantied low-pressure fuel pump for a wide range of carbureted 12V vehicles or equipment, who may already have other installation components.

User feedback summary: User feedback summary: Many users appreciate the robust build quality for its price point and the peace of mind offered by the 2-year warranty. Its consistent low-pressure output for carburetors is often noted, along with its ability to resolve vapor lock issues.

CarBole Micro Electric Gasoline Fuel Pump Universal 5/16 Inch

The CarBole micro electric fuel pump is another solid contender for carburetor applications, offering a healthy 35 GPH flow rate and a stable 4-7 PSI pressure. This makes it a great fit for a wide array of 4, 6, and 8-cylinder domestic engines. I’ve found pumps like this to be incredibly versatile – not just as a primary fuel pump, but also working exceptionally well as a fuel transfer pump. Its universal fit across popular brands like Toyota, Ford, and Honda underscores its adaptability. Just remember, this one is specifically for gasoline engines and not designed for fuel-injected systems.
– Flow Rate Of 35 GPH; Fuel Pressure Is 4-7 PSI
– Works well as a fuel transfer pump in addition to primary fuel pump
– Universal Fit for most Domestic 4, 6 & 8 Cylinder Carburetor Applications
– Perfectly suitable for Toyota, Ford, Honda, Mazda, and any other suitable car
– Great for gasoline engines; Not For Fuel Injected Engines

Pros:
– Good flow rate and pressure for carbureted engines
– Dual functionality as a primary pump or a reliable fuel transfer pump
– Wide universal compatibility for gasoline-powered vehicles
– Provides consistent, reliable performance for its intended use
Cons:
– Not suitable for fuel-injected engines due to low pressure
– Doesn’t come with a comprehensive installation kit (just the pump)
Best for: Owners of carbureted 4, 6, or 8-cylinder gasoline engines needing a reliable, no-frills fuel pump, or those looking for a versatile fuel transfer pump.

User feedback summary: User feedback summary: Users report that this pump is a direct and effective replacement for many original mechanical pumps, providing consistent fuel flow to their carburetors. Its affordability and universal fit are often praised.

Universal Electric Fuel Pump Kit for All 12V Cars Trucks

This universal electric fuel pump kit truly delivers an all-in-one solution for upgrading or replacing your carbureted fuel system. It includes the reliable HEP-02A electric fuel pump (3-6 PSI, 80-100 liters/hour flow), but what truly makes it stand out is the inclusion of a 2m/79 inch reinforced fuel pipe, a 5/16 inch fuel filter, and 10 hose clamps. The reinforced fuel line is a particularly high-quality component, featuring a woven fiber nylon thread, making it highly oil-resistant, cold-resistant, and, crucially, ethanol tolerant. This comprehensive approach means you’re not just getting a pump; you’re getting a durable and complete system that’s ready for installation.
– Electric Fuel Pump (HEP-02A): Model: HEP-02A; Material: Copper Clad Aluminum; Voltage: 12V; Current: 2A; Output Pressure is 3-6 psi, Pressure: 0.032-0.045 MPA; Flow: 80-100 liters/hour
– In-line Fuel Pump: Fits 5/16″ oil pipe, with transparent plastic shell and orange inner filter for impurity checks
– Wide Application: All 12V cars, trucks, boats, generators, lawnmowers (Toyota, Ford, Honda, Mazda, etc.)
– Reinforced Fuel Line: 2m/79 inch, 3.2mm wall thickness. Inner/outer pipe made of rubber, middle reinforcing layer is woven fiber nylon thread. Oil resistant, cold-resistant, and ethanol tolerant
– Package Include: Pump, 2m reinforced fuel pipe, 5/16 inch fuel filter, 10 hose clamps

Pros:
– Comprehensive kit includes pump, high-quality reinforced fuel line, filter, and clamps – a true all-in-one solution
– Reinforced fuel line is oil, cold, and ethanol resistant, significantly enhancing durability and compatibility
– Good flow rate and pressure for a wide range of carbureted systems
– Transparent filter allows for easy inspection of fuel clarity
– Wide universal compatibility for various 12V vehicles and equipment
Cons:
– Lower pressure range, exclusively unsuitable for fuel-injected systems
Best for: Anyone wanting a complete, high-quality, and durable low-pressure fuel system upgrade or replacement kit, especially for carbureted vehicles where ethanol resistance is a plus.

User feedback summary: User feedback summary: Users are very impressed with the completeness of the kit, particularly highlighting the high-quality reinforced fuel line as a significant bonus. They often report easy installation and reliable performance for their carbureted engines, appreciating the all-in-one solution.

Comparison Insights: Choosing the Right Components for Your Fuel Pump Wiring

When it comes to wiring an electronic fuel pump, you’re really looking at two main categories of products: the pumps themselves and the wiring/control kits. Understanding the nuances of each is key to a successful fuel pump installation.

For wiring kits, like the Electric Fuel Pump Relay Fuel Pump Wiring Harness Kit 40 Amp (Product 1), and its counterparts (Products 6 & 7), the focus is entirely on ensuring a reliable electrical supply. These kits are crucial because they prevent voltage drop, which is a silent killer of fuel pump performance and longevity. A heavy-duty 40 Amp relay is standard, and you’ll notice the best ones, like Products 6 and 7, utilize 10-gauge wire for power and pump connections. This thicker wire is vital, especially for performance pumps or longer runs, as it minimizes resistance and ensures your pump gets the full 12V it needs. The waterproof inline fuse holders and integrated fuse designs (Product 7) are also important for safety and protection from the elements, reducing the risk of shorts or corrosion. If you’re tackling any electronic fuel pump wiring, a quality relay harness is non-negotiable.

When considering the fuel pumps themselves, most of the pumps reviewed here (Products 3, 4, 5, 8, 9, 10) are low-pressure pumps designed for carbureted applications. Their pressure ranges typically fall between 2.5-7 PSI, which is perfect for carburetors but absolutely unsuitable for fuel-injected engines (which require much higher pressures, often 40-60+ PSI). Look at the ENGINEMAN Micro Electric Gasoline Fuel Pump Universal (Product 3) and the CarBole Micro Electric Gasoline Fuel Pump Universal (Product 9) for higher flow rates (35 GPH) within this low-pressure range, making them suitable for demanding V8 carbureted setups. Pumps like the Leadrise 12V Electric Universal Inline (Product 5) and Electric Fuel Pump 12v Electric Transfer Universal Low Pressure (Product 8) offer built-in check valves to prevent backflow, a nice feature for maintaining prime and consistent starts.

Value-added complete kits like the ENGINEMAN Micro Electric Gasoline Fuel Pump Universal with Complete Kit (Product 3) and the Universal Electric Fuel Pump Kit for All 12V Cars Trucks (Product 10) are fantastic for DIYers. They save you the hassle of sourcing individual components by providing everything from the pump and filter to the fuel line and clamps. The Universal Electric Fuel Pump Kit (Product 10) even includes a reinforced, ethanol-tolerant fuel line, which is a significant upgrade for durability and compatibility with modern fuels.

Finally, a unique offering is the Revolution Electronics Electric Fuel Pump Controller (Product 2). This isn’t just a relay; it’s a smart controller that adds crucial safety features like shutting off the pump if the engine isn’t running (via a tach signal) and offering a 3-second prime on key-on. This kind of intelligent control is especially valuable for classic car conversions and adds a layer of safety that standard relay kits don’t provide. While it has an internal fuse, remember it might require an external relay for very high amperage pumps.

In essence, for proper electronic fuel pump wiring, always start with a robust wiring harness to protect your system. Then, choose a pump that matches your engine’s requirements – low pressure for carburetors, much higher pressure for fuel injection (though none of the reviewed pumps are for high-pressure EFI). Consider a comprehensive kit if you’re starting from scratch, and think about a smart controller for enhanced safety and convenience.

Final Verdict: Powering Your Fuel System with Confidence

After going through these components, it’s clear that the path to reliable electronic fuel pump wiring involves selecting the right parts for your specific needs, focusing on safety, consistency, and durability.

For a rock-solid wiring foundation that prevents voltage drop and protects your electrical system, I’d lean towards the Electric Fuel Pump Relay Kit Fuel Pump Wiring Harness Kit (Clearly Labeled Wires) (Product 7). Its heavy-duty components, coupled with the user-friendly clear labels and wiring diagram, make it an exceptional choice for both seasoned mechanics and diligent DIYers looking for a no-fuss, reliable installation.

If you’re upgrading a carbureted vehicle and want an all-inclusive, high-quality solution, the Universal Electric Fuel Pump Kit for All 12V Cars Trucks (Product 10) is a phenomenal value. The inclusion of a robust, ethanol-tolerant fuel line alongside the pump, filter, and clamps means you’re getting a complete, durable fuel system in one go. This kit significantly simplifies the fuel pump installation process while offering superior component quality.

And for those who prioritize advanced safety and convenience, especially in classic car conversions, the Revolution Electronics Electric Fuel Pump Controller (Product 2) is simply unmatched. Its intelligent tach-monitoring and priming functions provide peace of mind and enhance the overall driving experience, making it a worthy investment despite requiring an additional relay for higher amperage pumps.

Ultimately, the best practice is to always use a dedicated relay harness for your electronic fuel pump, ensure your pump matches your engine type (carbureted vs. fuel injected), and don’t skimp on wire gauge. Investing in quality components from this list will ensure your electronic fuel pump wiring is reliable, safe, and ready for the long haul.

FAQ Section: All Your Questions About Electronic Fuel Pump Wiring Answered

1. Why do I need a relay for my electronic fuel pump?
A relay is crucial for electronic fuel pump wiring because it allows a low-current switch (like your ignition switch) to control a high-current device (your fuel pump). Without a relay, the high current draw of the fuel pump would quickly burn out your ignition switch, leading to failure and potential fire hazards. A relay also ensures the pump gets a direct, consistent power supply from the battery, preventing voltage drop which can significantly reduce pump performance and life.

2. What gauge wire should I use for my electronic fuel pump wiring?
For most electronic fuel pumps, especially high-performance or high-pressure models, a minimum of 10-gauge wire is recommended for the main power and ground wires running to the pump from the relay. For the trigger wire to the relay (which carries low current), 16 or 18-gauge wire is typically sufficient. Using properly sized wire is a core best practice for wiring an electronic fuel pump to prevent voltage drop and overheating.

3. Can I use an electronic fuel pump with a fuel-injected engine?
Yes, but you need a high-pressure electronic fuel pump specifically designed for fuel injection. The low-pressure pumps reviewed in this article (typically 2.5-7 PSI) are only suitable for carbureted engines. Fuel-injected engines require pumps that can deliver much higher pressures, often 40-60+ PSI, to properly atomize fuel and ensure correct injector operation. Always check the pressure requirements of your specific engine before selecting a pump for fuel pump installation.

4. How do I troubleshoot common electronic fuel pump wiring issues?
Common issues often stem from poor connections, incorrect wiring, or a faulty relay.
* No power to pump: Check your fuse, relay (listen for a click or test with a multimeter), and all wiring connections for looseness or corrosion.
* Low pump pressure: Could be a voltage drop (check wire gauge and connections), a clogged fuel filter, or a failing pump.
* Pump runs constantly: Check your relay’s trigger wire connection. If using a controller like the Revolution Electronics, ensure the tach signal is connected correctly.
* Pump humming but no fuel flow: Could indicate air in the line, a clogged filter, or a seized pump. Always ensure your electronic fuel pump wiring is grounded properly.

5. What’s the difference between a fuel pump relay kit and a fuel pump controller?
A fuel pump relay kit (like Products 1, 6, 7) is a basic electrical circuit designed to safely power your fuel pump. It uses a relay to switch high current with a low-current signal. A fuel pump controller (like Product 2) is a more advanced device that incorporates a relay but adds intelligent features. For example, it might monitor engine RPM (tach signal) to only run the pump when the engine is active, or provide a prime pulse on key-on. It offers enhanced safety and convenience beyond a simple relay setup for your electronic fuel pump wiring.

6. Are these electronic fuel pumps compatible with E85 fuel?
Most of the low-pressure electronic fuel pumps reviewed here are NOT recommended for E85, ethanol, or methanol. E85 is highly corrosive and requires specific fuel pump materials and internal components that are resistant to its properties. If you plan to run E85, you must select an “E85 compatible” or “flex-fuel” specific fuel pump to prevent premature failure. The Universal Electric Fuel Pump Kit for All 12V Cars Trucks (Product 10) does include an ethanol-tolerant fuel line, but verify the pump itself for E85 compatibility.

7. Where’s the best place to mount my electronic fuel pump?
For optimal performance and to prevent vapor lock, an electronic fuel pump should ideally be mounted as close to the fuel tank as possible, typically below the fuel tank’s lowest level. This allows the pump to “push” fuel rather than “pull” it, which it’s much more efficient at. Ensure it’s mounted securely, away from heat sources, and in a location that protects it from road debris. Proper mounting is as crucial as correct electronic fuel pump wiring for reliable operation.
