best dial indicator for lathe – 5 Options Reviewed

As a machinist, I know firsthand the importance of precision on the lathe. You can’t achieve those tight tolerances and smooth finishes without knowing exactly where your workpiece is relative to your tools. That’s where a good dial indicator comes in – it’s an indispensable tool for everything from truing up stock in the chuck to aligning your tailstock. Finding the best dial indicator for lathe work can make a huge difference in your shop’s efficiency and the quality of your output. I’ve put a few popular options through their paces to help you find one that fits your needs.

IMAGE	PRODUCT NAME	AMAZON LINK
	Qnkaa Dial Indicator with Magnetic Base Holder Fine…	View on Amazon
	HFS(R) 0-1/2″ Dial Indicator Lathe Tool High Precision,…	View on Amazon
	Westhoff Bundle 400-3 Mighty Mag Base with Quick Release…	View on Amazon
	AltitudeCraft Precision Lathe Tool Post Indicator Holder,…	View on Amazon
	Neoteck 1″/0.001″ Dial Indicator,Dial Indicator Gauge Full…	View on Amazon

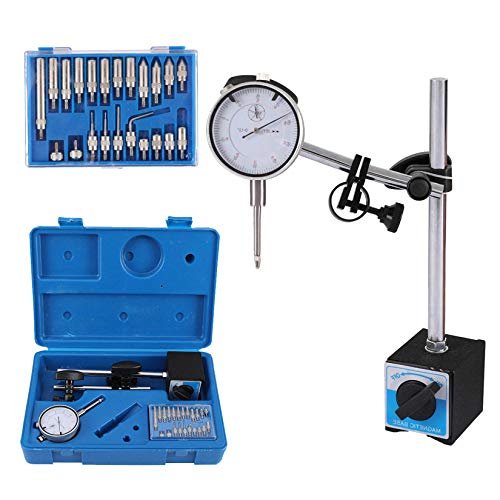

Qnkaa Dial Indicator with Magnetic Base Holder Fine…

This Qnkaa offering is a fantastic all-in-one kit, especially for those just getting started or looking for a comprehensive solution. It comes with a versatile magnetic base and a wide array of test tips, meaning you’re pretty much ready to tackle any measurement task right out of the box. I found the fine adjustment knob on the magnetic base incredibly useful for dialling in precise positions without fiddling too much. The magnetic base is quite strong, giving you confidence that your indicator isn’t going anywhere during critical measurements.

Key features that stand out:
– Measuring Range: 0-1″ with 0.001″ resolution
– Fine Adjustment Knob: For precise positioning
– Magnetic Base: Strong 2 magnet surfaces with ON/OFF control, 9″ overall height
– Mounting Options: Flat back or lug back (1/4”, 6.3mm hole size)
– Included Accessories: 22 pieces test tips in a storage case

Pros:
– Comes as a complete kit with a magnetic base and many accessories
– Magnetic base has strong holding power and an ON/OFF switch
– Fine adjustment knob simplifies precise setup
– Customer support commitment is a nice bonus

Cons:
– The overall kit might be more than some users need if they only want the indicator.

Best for: Hobbyists and small shops seeking a ready-to-use, versatile dial indicator kit with a reliable magnetic base.

Expert Opinion: This bundle delivers excellent value with its comprehensive accessories and robust magnetic base, making it a highly practical choice for general workshop use.

HFS(R) 0-1/2″ Dial Indicator Lathe Tool High Precision,…

If you’re looking for a no-nonsense, highly precise dial indicator for your lathe that focuses on core functionality, the HFS(R) is a solid contender. Its robust construction feels durable in hand, and the rotational bezel with a clamp makes zeroing out your measurements incredibly straightforward. While it doesn’t come with a magnetic base, its professional quality and interchangeable hardened contact point speak volumes about its intended use in demanding industrial or scientific applications. It’s a workhorse designed for consistent, accurate readings.

Key features that stand out:
– Measuring Range: 0-1/2″ with 0.001″ accuracy
– Zero Setting: Rotational bezel with clamp for easy adjustment
– Mounting: 1/4″ lug back for secure attachment
– Durability: Interchangeable hardened contact point
– Quality: Engineered for high precision in professional environments

Pros:
– Delivers high precision and accuracy for critical tasks
– Durable construction with an interchangeable contact point
– Easy to zero out with the rotational bezel and clamp
– Professional quality suitable for various applications

Cons:
– The 0-1/2″ measuring range might be a bit limiting for certain larger jobs.

Best for: Machinists and engineers who already have a magnetic base or stand and need a reliable, high-precision standalone dial indicator.

Expert Opinion: This indicator focuses on essential precision, offering a robust and dependable tool for accurate measurements without unnecessary frills.

Westhoff Bundle 400-3 Mighty Mag Base with Quick Release…

The Westhoff Bundle truly shines with its Mighty Mag Base, which is a piece of engineering on its own. Boasting a massive 45 pounds of holding power and a convenient quick-release cam lever, repositioning your indicator becomes a breeze. The base’s compact design and multiple mounting locations add to its versatility. Paired with a decent dial indicator offering a finer 0.0005″ resolution, this bundle is designed for those who value both stability and speed in their measurement setups. I was particularly impressed by how effortlessly the quick-release lever worked.

Key features that stand out:
– Magnetic Base: Rugged zinc diecast housing, 45 lbs holding power
– Repositioning: Quick-release cam lever for fast adjustments
– Indicator Resolution: 0.0005″ with 1.00″ total travel
– Mounting Versatility: 6 mounting locations (tapped holes, reamed hole, V-shaped hole)
– Compact Size: 4-3/8” x 1” x 1-1/16”

Pros:
– Exceptionally strong magnetic base with quick-release functionality
– Higher resolution (0.0005″) indicator for finer measurements
– Numerous mounting options on the magnetic base for various setups
– Rugged construction of the magnetic base ensures longevity

Cons:
– The comprehensive features and robust base might place it at a higher price point.

Best for: Machinists and professionals who frequently need to reposition their indicator and demand superior holding power combined with good precision.

Expert Opinion: The star here is undoubtedly the Mighty Mag Base, providing unparalleled stability and ease of use, making this bundle a top choice for demanding workshop environments.

AltitudeCraft Precision Lathe Tool Post Indicator Holder,…

This AltitudeCraft offering isn’t just a dial indicator; it’s a specialized tool for your lathe. Designed specifically to mount on your quick-change tool post, it excels at quickly centering workpieces in chucks and detecting misalignment. The .0005” graduation on the included dial indicator ensures high-accuracy measurement, which is crucial for achieving perfect runs on your lathe. Its robust construction from premium 6061 aluminum with no plastic parts, coupled with lifetime technical support, screams quality and dedication to lathe precision.

Key features that stand out:
– Specialized Design: Lathe tool holder for quick-change tool posts (AXA/BXA sizes)
– High-Accuracy Indicator: .0005” graduation for precise misalignment detection
– Construction: Machined from premium 6061 aluminum with red anodized finish, no plastic parts
– Universal Fit: 1/2” oxide-coated steel shaft for most standard tool posts
– Support: Detailed usage guide and lifetime technical support

Pros:
– Specifically designed for lathe tool posts, ideal for workpiece centering
– Offers very high accuracy with .0005” resolution
– Extremely durable and solid metal construction
– Universal compatibility with common quick-change tool posts
– Excellent customer support and guidance

Cons:
– Its specialized design means it’s less versatile for general measurement tasks off the lathe.

Best for: Dedicated lathe users, from serious hobbyists to professional machinists, who prioritize fast, accurate workpiece centering and alignment.

Expert Opinion: This is a purpose-built solution that integrates seamlessly with a lathe’s tool post, making it an invaluable asset for consistent, precise turning operations.

Neoteck 1″/0.001″ Dial Indicator,Dial Indicator Gauge Full…

The Neoteck dial indicator is a solid, no-frills option that impresses with its full metal construction. This isn’t a plastic-heavy tool; it’s built to withstand the rigors of a busy workshop, featuring a brass insert for the main shaft and a hardened stainless steel rack. With a 0-1″ measuring range and 0.001″ resolution, it’s accurate enough for most tasks on the lathe, CNC machining, and even woodworking. The inclusion of clear, 4-step instructions for measurement and calibration makes it particularly user-friendly for both novices and experienced users.

Key features that stand out:
– Precision: 0-1″/0.001″ high accuracy indicator
– Construction: Full metal with brass insert for main shaft, hardened stainless steel rack
– Mounting Versatility: 6.5mm detachable rear cover with flat or lug options, 3/8″ stem diameter
– Wide Applications: Suitable for lathe, CNC, woodworking, 3D printer bed leveling
– User-Friendly: Includes 4 quick steps for measurements

Pros:
– Exceptionally durable full metal construction for longevity
– Good accuracy and precise readings for various applications
– Dual mounting options (flat back or lug back) for flexibility
– Clear and easy-to-follow setup and measurement instructions
– Versatile for a wide range of precision tasks

Cons:
– Does not include a magnetic base, which would need to be purchased separately for many applications.

Best for: Beginners or experienced users looking for a robust, reliable, standalone dial indicator that’s built to last and versatile enough for multiple shop tasks.

Expert Opinion: A sturdy and dependable choice, this indicator provides core precision in a durable package, making it a great fundamental tool for any workshop.

Comparison Short Insights

When looking for the best dial indicator for lathe work, consider these differences:

• Integrated Solutions vs. Standalone: The Qnkaa and Westhoff bundles offer a complete package including a magnetic base, which is great for convenience. The HFS(R) and Neoteck are standalone indicators, giving you the flexibility to pair them with your preferred mounting system.
• Lathe-Specific vs. General Purpose: The AltitudeCraft stands out as purpose-built for lathe tool posts, offering unique advantages for workpiece centering. The others are more general-purpose, excellent for various shop tasks.
• Resolution: For finer work, the Westhoff and AltitudeCraft provide a higher 0.0005″ resolution, compared to the 0.001″ on the Qnkaa, HFS(R), and Neoteck. Higher resolution means you can detect smaller deviations.
• Magnetic Base Strength & Features: The Westhoff Mighty Mag Base is exceptionally strong and features a quick-release cam, a significant upgrade from standard magnetic bases. The Qnkaa also includes a strong base with fine adjustment, adding to its appeal.
• Durability and Build Quality: The Neoteck and AltitudeCraft boast full metal construction with high-quality internal components, indicating excellent longevity, while the HFS(R) also highlights its durable construction.

Final Verdict

Choosing the best dial indicator for lathe use truly depends on your specific needs and existing shop setup.

• For the most comprehensive and versatile setup that’s ready to go right out of the box, the Qnkaa Dial Indicator with Magnetic Base Holder Fine… is an excellent choice. Its included magnetic base and wealth of accessories provide incredible value.
• If your primary focus is precise workpiece centering and alignment directly on your lathe’s quick-change tool post, the AltitudeCraft Precision Lathe Tool Post Indicator Holder… is unmatched. Its specialized design and robust build make it indispensable for serious lathe work.
• For those seeking top-tier magnetic base performance and a slightly finer resolution, the Westhoff Bundle 400-3 Mighty Mag Base with Quick Release… offers superior holding power and quick repositioning, perfect for dynamic workshop tasks.
• If you need a robust, reliable standalone indicator for general precision tasks and prefer to choose your own mounting solution, the Neoteck 1″/0.001″ Dial Indicator… offers fantastic durability and good accuracy for the price.

Ultimately, any of these options will be a significant upgrade for your lathe work, helping you achieve better precision and more consistent results.

Comprehensive FAQ Section

1. Why do I need a dial indicator for my lathe?
A dial indicator is crucial for achieving precision on your lathe. It helps you accurately measure runout, center workpieces in the chuck, align your tailstock, check for squareness, and verify the accuracy of your machine setup. Without it, achieving tight tolerances and consistent results is extremely difficult.

2. What resolution should I look for in a best dial indicator for lathe?
For most general lathe work, a 0.001″ (one-thousandth of an inch) resolution is sufficient. This provides good accuracy for common machining tasks. However, for ultra-high precision work or when chasing very tight tolerances, a 0.0005″ (half a thousandth of an inch) resolution, like those found in the Westhoff or AltitudeCraft options, can be a significant advantage, allowing you to detect even smaller deviations.

3. Are magnetic bases essential for dial indicators on a lathe?
While not strictly essential if you have other mounting options (like a tool post holder), a good magnetic base is highly recommended. It provides a stable and easily repositionable platform for your dial indicator, allowing you to attach it to various ferrous surfaces on your lathe (bed, headstock, etc.) for versatile measurement tasks. Many users consider it a must-have accessory to get the most out of their best dial indicator for lathe.

4. What’s the difference between a dial indicator and a test indicator?
A dial indicator typically measures linear displacement along its spindle’s axis. It has a longer travel range and is excellent for measuring runout, flatness, and general alignment. A dial test indicator (DTI), on the other hand, measures angular deviation, often with a lever-style arm. DTIs usually have shorter travel but offer finer resolution and are preferred for checking small features, bore concentricity, and precise edge finding. For comprehensive lathe work, both can be useful, but a standard dial indicator is more common for initial setup and general measurement.

5. How do I properly set up and use a dial indicator for lathe alignment?
To align your lathe, first ensure your dial indicator is securely mounted (e.g., on a magnetic base or tool post holder). For tailstock alignment, mount the indicator to your headstock or tool post, zero it on a reference surface (like a precision ground bar in the chuck), then move it to the tailstock barrel to measure any deviation along its length. For workpiece centering, mount the indicator to your tool post and bring the contact point against the rotating workpiece, adjusting the chuck jaws until runout is minimized. Always make sure the indicator plunger is perpendicular to the surface being measured for accurate readings.

6. What does “lug back” mean for a dial indicator?
A “lug back” is a common mounting option for dial indicators. It refers to a small tab or bracket on the back of the indicator with a hole in it (typically 1/4″ or 6.3mm). This lug allows the indicator to be securely bolted or clamped to various stands, fixtures, or mounting accessories, providing a stable alternative to a flat back that might simply press against a surface. It’s a versatile feature often found on the best dial indicator for lathe applications.

7. Can I use a dial indicator for lathe leveling?
Yes, a dial indicator can be used in conjunction with a precision machinist’s level to fine-tune lathe leveling. While a good level gives you a general idea, an indicator can help you verify the straightness of your bed ways. By running the indicator along a precision ground bar mounted in the headstock or on the ways themselves, you can detect slight twists or variations in height, which you can then correct by shimming the lathe feet.

8. How often should I calibrate my dial indicator?
The frequency of calibration depends on how often you use your dial indicator, the precision required for your work, and the environment it’s exposed to. For professional shops, annual calibration might be required. For hobbyists, checking its accuracy against a known standard (like gauge blocks) every 6-12 months or if you suspect it’s been dropped or handled roughly is a good practice. Regular visual inspection for any sticky movements or bent plungers is also advisable to maintain your best dial indicator for lathe in top working condition.
