Best Relay Testers for Accurate Electrical Testing

As someone who’s spent countless hours troubleshooting electrical issues in vehicles, from the simplest blown fuse to elusive intermittent problems, I can tell you firsthand: having the right tools makes all the difference. There’s nothing more frustrating than chasing a ghost in the electrical system, especially when a faulty relay can mimic so many other problems. That’s why I’m excited to share my insights on the best relay testers for accurate electrical testing. I’ve put these types of tools to the test, and a reliable relay tester can save you heaps of time, money, and head-scratching. Whether you’re a seasoned mechanic or a DIY enthusiast, understanding which tester fits your needs can transform your diagnostic process, allowing you to quickly pinpoint issues and get things working again. Let’s dive into some of the top contenders that truly deliver when it comes to precise and efficient electrical testing.

IMAGE	PRODUCT NAME	AMAZON LINK
	Sound Troubleshooting Automotive Relay Tester with Relay…	View on Amazon
	Performance Tool 3009 Compact Cordless Automotive Relay…	View on Amazon
	YUXIVCNE 9038 Fuel Pump Relay Bypass Master Kit – Pack…	View on Amazon
	RVMARINEPAT Relay Bypass Switch & Diagnostic Tester – 9038…	View on Amazon
	2025 Autel Circuit Tester, Power Circuit Probe Scan Tool,…	View on Amazon
	VDIAGTOOL V500 Pro Automotive Circuit Tester, Power Circuit…	View on Amazon
	VDIAGTOOL V200 Pro Automotive Power Circuit Probe Tester…	View on Amazon
	GODIAG Power Circuit Probe Tool, Auto Short Circuit Finder…	View on Amazon
	Test Light Automotive,DC 6-75V Digital LED Fuse & Voltage…	View on Amazon
	2025 Autel PowerScan PS100 Power Circuit Probe Kit, 12V…	View on Amazon

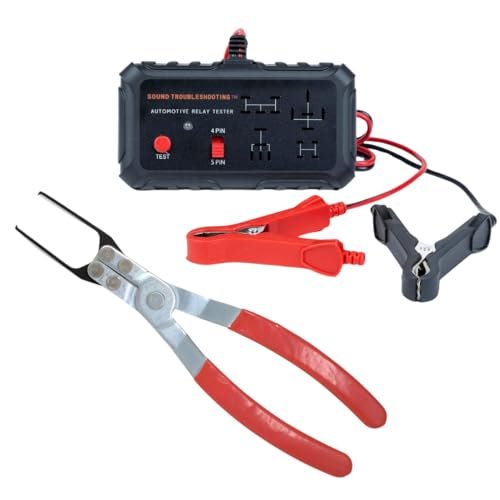

Sound Troubleshooting Automotive Relay Tester with Relay…

When you’re constantly on the go or just need a straightforward solution, this Sound Troubleshooting tester truly shines. I’ve found it incredibly user-friendly; it practically thinks for you. You just plug in the relay, press the button, and it automatically handles the rest, giving you a clear pass or fail with its green and red LEDs. It’s a real time-saver, especially with its included relay puller that makes swapping out those stubborn relays a breeze. This compact design means it doesn’t take up much space in my toolbox, and it’s always ready for quick diagnostics, whether I’m in the garage or out in the field.

Key features that stand out:
– Automatic Pin Detection and Test Sequence: No guessing which pin goes where.
– Clear LED Indicators: Green for normal, red for abnormal, making diagnosis instant.
– Built-in Relay Puller: Saves your fingers and prevents damage to relays.
– Compact and Portable Design: Easy to carry for mobile jobs.
– Patented Design for Quick Results: Delivers accurate feedback fast.

Pros:
– Extremely easy to use, ideal for quick checks.
– Provides clear visual feedback (red/green LEDs).
– Includes a handy relay puller.
– Suitable for most common automotive 4-pin and 5-pin relays.

Cons:
– Requires connection to a 12V car battery (11V-15V) to operate.

Best for: DIYers and mechanics looking for a simple, dedicated, and fast way to test common automotive relays.

Expert Opinion: This tester is fantastic for quickly confirming relay functionality. Its automatic detection and straightforward LED feedback eliminate guesswork, making it a staple for anyone who deals with automotive relays regularly. Just remember to ensure your vehicle battery is within the specified voltage range for accurate results.

Performance Tool 3009 Compact Cordless Automotive Relay…

If you’re tired of fumbling with battery clamps or needing an external power source, the Performance Tool 3009 is a breath of fresh air. I appreciate its self-contained design, meaning it’s powered by AA batteries, which offers incredible convenience for testing relays right on my workbench or anywhere without lugging around a car battery. It quickly checks both the coil and switch contact functions of most 12-volt 4 and 5-pin automotive relays. The green LED for pass and red LED for fail is intuitive and gives me instant, clear results, making it an excellent compact tool for quick and accurate relay assessments.

Key features that stand out:
– Cordless Operation: Self-contained power with AA batteries.
– Instant Pass/Fail Indicators: Green LED for good, Red LED for bad.
– Tests Coil and Switch Contact Function: Comprehensive relay check.
– Compatible with Common 12V 4 & 5 Pin Relays: Versatile for most vehicles.
– Compact, All-in-One Design: Highly portable and easy to store.

Pros:
– Cordless design offers maximum portability and convenience.
– Delivers instant and clear test results.
– Easy to use for quick relay diagnostics.
– Tests the most common relay types.

Cons:
– Limited to testing only 12V 4 & 5 pin automotive relays.

Best for: Technicians and hobbyists needing a highly portable, grab-and-go relay tester that doesn’t require an external power source.

Expert Opinion: The biggest draw of this Performance Tool tester is its independence from a vehicle battery. For quick bench tests or on-the-fly diagnostics where a power source isn’t readily available, it’s invaluable. It streamlines the testing process significantly by focusing solely on common 12V relays.

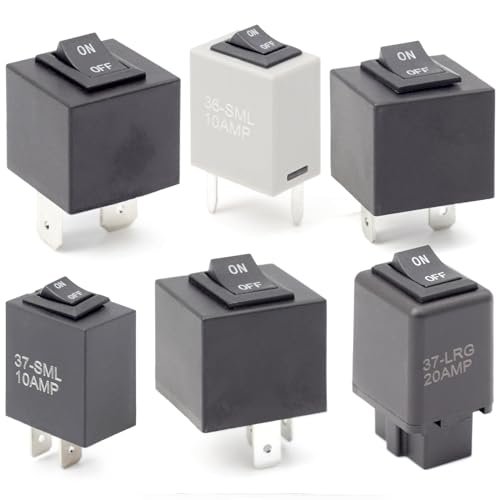

YUXIVCNE 9038 Fuel Pump Relay Bypass Master Kit – Pack…

This YUXIVCNE kit isn’t your traditional relay tester in the sense of a pass/fail, but it’s an incredibly powerful diagnostic tool that interacts directly with relay circuits. I’ve found it indispensable for isolating and testing components independently of the vehicle’s “key on” system. When I suspect a fuel pump, window motor, or even a cooling fan isn’t activating, this bypass switch lets me manually apply power directly to that component’s circuit, bypassing the relay itself. It’s fantastic for verifying if the component is faulty or if the issue lies further upstream with the relay or control circuit. The plug-and-play design makes setup incredibly easy, especially for specific Audi, BMW, and Volkswagen models, among others.

Key features that stand out:
– Relay Bypass Functionality: Provides independent control over relay-controlled components.
– Wide Vehicle Compatibility: Supports various Audi, BMW, VW, GM, Chrysler, and more.
– Direct Component Activation: Test fuel pumps, window motors, headlights, etc., with a push of a switch.
– Streamlined Fuel Injection Testing: Simplifies diagnosis of fuel delivery issues.
– Plug-and-Play Design: Effortless installation into relay sockets.

Pros:
– Allows for direct, independent testing of vital components.
– Excellent for diagnosing if a component or its control circuit is at fault.
– Wide compatibility with various vehicle makes.
– Simple and quick to set up and use.

Cons:
– It’s a bypass kit, not a traditional relay “tester” for internal relay functionality.

Best for: Mechanics and advanced DIYers who need to independently activate automotive components to diagnose electrical issues, especially around fuel pump and other relay-controlled systems.

Expert Opinion: Don’t mistake this for a standard relay tester; it’s a diagnostic bypass tool. Its real strength lies in allowing you to force-feed power to a circuit that’s normally controlled by a relay. This is crucial for verifying component function and quickly narrowing down problems in a complex electrical system.

RVMARINEPAT Relay Bypass Switch & Diagnostic Tester – 9038…

Similar to the YUXIVCNE, the RVMARINEPAT kit is another excellent relay bypass and diagnostic tool that I’ve found extremely useful. This 6-pack offers incredible versatility with multiple sizes (9036, 9037, 9038 series in various amperage ratings), covering a broader range of relay types and applications than many single-unit kits. I particularly value its ability to save significant diagnostic time by allowing me to quickly apply power to components like fuel pumps, headlights, and window motors. The construction feels robust, with a 20 amp continuous and 30 amp surge capacity, which means it can handle the demands of most automotive components without worry.

Key features that stand out:
– Comprehensive 6-Pack Kit: Includes multiple bypass switches for various relay models (9036, 9037, 9038 series).
– Wide Vehicle and Component Compatibility: Works with Audi, BMW, VW, GM, Chrysler, and more for various components.
– Direct Component Control: Effortlessly activate fuel pumps, lights, motors, etc.
– High-Quality Materials and Capacity: Built to last with a 20A continuous/30A surge rating.
– Time-Saving Diagnostic Tool: Quickly identifies electrical issues by isolating components.

Pros:
– Extensive compatibility with many vehicles and relay types due to the multi-pack.
– Robust construction ensures reliable performance.
– Excellent for quickly isolating and testing electrical components.
– Saves time by streamlining the diagnostic process.

Cons:
– Primarily a bypass switch, not a device to test the internal function of a relay itself.

Best for: Professional mechanics and busy workshops needing a versatile kit to bypass various automotive relays for component activation and rapid electrical diagnostics.

Expert Opinion: The strength of the RVMARINEPAT kit is its comprehensiveness. With six different bypass switches, you’re prepared for almost any automotive relay bypass scenario. It’s a tool for quickly confirming if a component is faulty or if the relay controlling it, or the control circuit, is the culprit.

2025 Autel Circuit Tester, Power Circuit Probe Scan Tool…

The Autel circuit tester is a far more advanced tool than a simple relay tester; it’s a full-fledged electrical diagnostic powerhouse. I’ve been impressed by its 160×128 TFT display and the array of functions it offers, from voltage and polarity tests to continuity checks and even component activation. This tool lets me activate components like blower motors or fuel injectors directly, which is incredibly useful for testing relays by powering the circuit they control or checking the relay’s output. The 20ft cable with an extra 20ft extension is a godsend, allowing me to reach every corner of a vehicle, even larger ones. It truly simplifies complex troubleshooting with its intuitive design and detailed feedback.

Key features that stand out:
– All-in-One Power Circuit Tester: Covers a wide range of electrical diagnostics.
– TFT Display: Provides clear and detailed readings.
– Four Working Modes: DC Voltage, AC Voltage, Resistance, and Tone On/Off.
– Component Activation: Directly power and test various electrical components.
– Short Circuit Location and Overload Protection: Essential for safe and efficient troubleshooting.
– Long 20ft Cable with Extension: Allows for testing across large vehicles.

Pros:
– Comprehensive functionality for detailed electrical diagnostics.
– High-resolution display and multiple working modes.
– Excellent for activating and testing on/off-board components, including relay circuits.
– Built-in safety features like short circuit protection.
– Extremely long cable for maximum reach.

Cons:
– More complex and feature-rich than a simple dedicated relay tester, potentially overwhelming for basic needs.

Best for: Professional technicians and serious DIYers who need a versatile, advanced circuit testing tool capable of performing in-depth diagnostics, component activation, and comprehensive electrical troubleshooting, including testing relay circuits.

Expert Opinion: While not a dedicated relay tester, the Autel circuit tester’s component activation feature makes it highly effective for testing relay circuits. You can activate the circuit that a relay controls to confirm its function, or check for proper voltage and continuity at the relay socket itself. It’s a powerful investment for anyone serious about automotive electrical work.

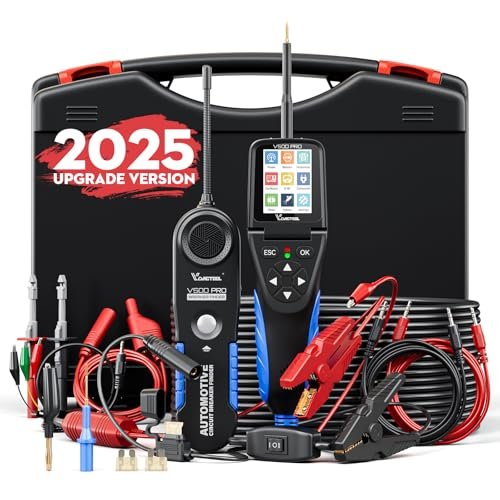

VDIAGTOOL V500 Pro Automotive Circuit Tester, Power Circuit…

The VDIAGTOOL V500 Pro is an absolute beast when it comes to automotive electrical diagnostics. What really stands out to me is its all-in-one capability, offering everything from basic circuit tests to an oscilloscope mode and injector testing. This tool is particularly effective for relay testing because of its component activation and 0-5V power supply features. I can activate relays directly, test their associated circuits, and even simulate sensor inputs to trigger relays. The 90° rotating screen is a small but mighty detail that significantly improves usability in awkward spaces, making it much easier to read data from any angle.

Key features that stand out:
– Comprehensive All-in-One Circuit Tester: Includes circuit breaker, voltage, resistance, polarity, and more.
– Oscilloscope and Multimeter Modes: Advanced diagnostic capabilities.
– Injector Test Feature: Helps diagnose fuel injector conditions.
– 0-5V Adjustable Power Supply: Simulates sensor inputs and tests circuits safely.
– Component Activation and Signal Circuit Test: Powers and diagnoses various parts, including relays.
– 90° Rotating Screen: Enhances visibility and usability.

Pros:
– Extremely versatile, covering a vast array of electrical tests.
– Advanced features like oscilloscope and injector testing.
– Adjustable power supply for precise component simulation.
– Ergonomic design with a rotating screen.
– Comes with a comprehensive kit of accessories.

Cons:
– Its advanced features and size might be overkill or too complex for someone only needing basic relay testing.

Best for: Master technicians and specialized workshops requiring a highly advanced, multi-functional automotive electrical diagnostic tool that can perform detailed circuit analysis, component activation, and specialized tests like injector diagnostics.

Expert Opinion: The V500 Pro is a serious piece of equipment. For relay testing, its component activation and 0-5V power supply are incredibly valuable for triggering relays and verifying their operation. The oscilloscope feature, while not directly a relay tester function, allows for deeper analysis of control signals, providing a holistic view of the electrical system.

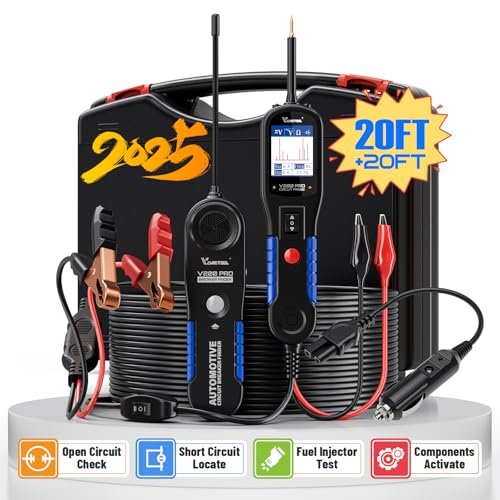

VDIAGTOOL V200 Pro Automotive Power Circuit Probe Tester…

The VDIAGTOOL V200 Pro offers a compelling balance of comprehensive features without the extreme complexity of its V500 sibling. I consider it an all-in-one solution for circuit problems, especially with its dedicated breaker finder mode for locating open circuits and broken wires. For relay testing, the component activation feature is key—I can easily send signals to activate components controlled by relays, helping me confirm if the relay is engaging correctly or if the component itself is faulty. The 20ft extension cord means I never struggle with reach, which is a huge convenience. It’s robust, user-friendly, and a reliable partner for many automotive electrical tasks.

Key features that stand out:
– All-in-One Circuit Diagnosis: Covers voltage, resistance, polarity, continuity, component activation, and more.
– Breaker Finder Mode: Efficiently locates open circuits and broken wires.
– Component Activation: Powers various car parts, including those controlled by relays.
– Overload Protection: Ensures safety for both the tool and vehicle electronics.
– Long 20ft Extension Cord: Offers extensive reach around the vehicle.
– Dual Mode Functionality: Easily switches between power circuit probe and circuit breaker finder.

Pros:
– Excellent all-around tool for a wide range of electrical diagnostics.
– Dedicated mode for finding open circuits and tracing wires.
– Effective for activating components and testing relay circuits.
– Built-in safety features.
– Great value with comprehensive functionality.

Cons:
– The breaker finder mode requires a separate 9V battery, which is a minor inconvenience.

Best for: DIY enthusiasts and professional mechanics who need a robust, versatile circuit tester that excels at finding open circuits, tracing wires, and activating components, making it highly capable for comprehensive relay circuit diagnostics.

Expert Opinion: The V200 Pro is a fantastic mid-range option. Its ability to activate components means you can effectively test the circuit a relay is part of, providing valuable diagnostic insights. The added breaker finder mode is a huge bonus for overall electrical troubleshooting, positioning it as more than just a relay tester but a comprehensive solution.

GODIAG Power Circuit Probe Tool, Auto Short Circuit Finder…

The GODIAG Power Circuit Probe Tool has become one of my go-to tools for quickly diagnosing continuity, polarity, and short/open circuits. Its strength for relay testing lies in its ability to check switches, relays, and diodes for on-off functionality, and importantly, activate electronic components. This means I can directly supply power to a relay coil or its output to verify its action. The 20ft long test lead is incredibly practical, letting me work from the front bumper to the trailer hitch without constantly repositioning my power source. I also appreciate the quick self-test and overload protection, which adds a layer of safety and ensures the tool’s longevity.

Key features that stand out:
– Multi-functionality: Tests continuity, polarity, voltage, ground, short/open circuits.
– Component Activation: Activates relays, solenoids, actuators directly.
– Quick Self-Test & Overload Protection: Ensures safe and reliable operation.
– Long 20ft Test Lead: Provides extended reach around the vehicle.
– LED Indicator & Buzzer: Clear visual and audible feedback for polarity and signals.

Pros:
– Versatile for a variety of electrical tests.
– Excellent for activating components to check relay function.
– Long cable offers great working flexibility.
– Safety features enhance user confidence.
– Clear indicators for quick diagnosis.

Cons:
– Lacks a digital display for precise voltage readings, relying on LED color.

Best for: Mechanics and DIYers needing a straightforward, robust power probe for quick checks, component activation, and effective short/open circuit tracing, which indirectly aids in verifying relay circuit integrity.

Expert Opinion: This GODIAG probe is a solid contender for anyone needing a reliable power probe. For relay testing, its capacity to activate components is its standout feature. You can power up the relay’s coil to hear it click, or apply power to its switched output to see if the connected component activates, providing direct functional verification.

Test Light Automotive,DC 6-75V Digital LED Fuse & Voltage…

Sometimes, simplicity is key, and this Test Light Automotive voltage tester embodies that. While it’s not a dedicated relay tester, it’s an essential foundational tool for any electrical work, and absolutely crucial when you’re diagnosing circuits that involve relays. I use it constantly to quickly check for voltage presence and polarity at relay sockets, fuses, and associated wiring. The digital LED display gives me a precise voltage reading, and the red/green indicators make polarity identification foolproof. Its wide 6-75V DC range makes it versatile for cars, trucks, and even heavy-duty equipment. For basic power and ground checks around a relay, this simple tool is often the first thing I grab.

Key features that stand out:
– Wide DC Voltage Range (6-75V): Versatile for various vehicles and applications.
– Digital LED Display: Provides accurate voltage readings.
– LED Red/Green Indicators: Clearly shows positive and negative polarity.
– Extended Spring Wire and Large Alligator Clips: Offers flexibility and secure connections.
– High-Quality Safety Materials: Ensures durability and user safety.

Pros:
– Extremely simple to use for basic electrical checks.
– Provides accurate digital voltage readings.
– Clear polarity indication.
– Wide voltage compatibility.
– Affordable and robust.

Cons:
– It’s a basic test light, not a dedicated relay functionality tester or bypass tool.

Best for: Every garage and toolbox. It’s an indispensable entry-level tool for quickly checking voltage and polarity at relay terminals, fuses, and wiring before more complex testing.

Expert Opinion: While it won’t tell you if a relay’s internal contacts are bad, this digital test light is crucial for verifying if the relay is receiving proper power and ground, and if its output is switching correctly when activated. It’s the groundwork for any relay troubleshooting, allowing you to confirm basic circuit integrity.

2025 Autel PowerScan PS100 Power Circuit Probe Kit, 12V…

The Autel PowerScan PS100 is another stellar contender in the advanced circuit tester category, and it’s particularly well-regarded as a more affordable yet powerful alternative to older, higher-priced models. I’ve personally found its four working modes (DC/AC Voltage, Resistance, Tone On/Off) to be incredibly useful for thorough diagnostics. For relay testing, its component activation and continuity tests are invaluable. I can activate a relay directly, check for continuity through its contacts, and even use its short circuit finding capability to trace issues within the relay’s circuit. The 40ft total wiring (20ft main + 20ft extension), coupled with a built-in flashlight, makes it exceptionally practical for tackling jobs in large vehicles or dark environments.

Key features that stand out:
– Comprehensive Circuit Tester: Supports circuit test, continuity, component activation, ground test, short location, voltage, polarity, and more.
– Four Working Modes: DC Voltage, AC Voltage, Resistance, Tone On/Off for versatile testing.
– Component Activation: Powers and tests various vehicle components, including those controlled by relays.
– Continuity Tests & Signal Tests: Helps diagnose wiring and sensor issues.
– Short Circuit Location: Fast and accurate detection of faulty wires.
– Long 40ft Wiring & Built-in Flashlight: Maximizes reach and visibility.

Pros:
– Powerful and versatile for a wide range of electrical diagnostics.
– Excellent value compared to older, similar high-end tools.
– Effective for activating components and tracing relay circuits.
– Comes with extensive wiring and practical features like a flashlight.
– Clear audible and visual feedback.

Cons:
– Similar to other advanced probes, it might have a steeper learning curve for beginners compared to simple relay testers.

Best for: Automotive professionals and serious DIYers seeking a robust, feature-rich power probe that offers comprehensive electrical system analysis, component activation, and efficient short-circuit tracing at a competitive price, making it highly effective for accurate electrical testing of relay systems.

Expert Opinion: The Autel PowerScan PS100 is an industry favorite for a reason. Its component activation function is crucial for checking relays directly, by powering either the coil or the switched circuit. The ability to quickly locate short circuits in a relay’s wiring or check for continuity through its contacts makes it an indispensable tool for accurate electrical testing related to relays.

Helpful Comparison Insights

When looking for the best relay testers for accurate electrical testing, it’s easy to get overwhelmed by the sheer number of options. My experience has shown me that tools fall into a few distinct categories, and understanding these can guide your decision.

First, you have the dedicated relay testers like the Sound Troubleshooting Automotive Relay Tester and the Performance Tool 3009. These are fantastic because they’re designed for one job: testing relays for internal functionality. They offer simple, immediate pass/fail results, which is incredibly valuable when you just need to know if the relay itself is good or bad. The cordless convenience of the Performance Tool 3009 makes it a standout for quick, on-the-go testing, while the Sound Troubleshooting unit’s automatic pin detection is a real time-saver, preventing misconfigurations. If your primary goal is to quickly confirm if a relay is faulty, these are your go-to options.

Next, there are the relay bypass switches, exemplified by the YUXIVCNE and RVMARINEPAT kits. These aren’t testers in the traditional sense, but they are critical diagnostic tools for relay circuits. Instead of testing the relay’s internal mechanism, they allow you to bypass the relay and directly power the component it controls (e.g., fuel pump, fan). This is incredibly useful for troubleshooting, as it helps you determine if the component itself is working, or if the fault lies with the relay or its control circuit. The RVMARINEPAT’s comprehensive 6-pack offers unmatched versatility for a wide range of vehicles and relay types. These kits are all about circuit isolation and component activation, providing a different but equally valuable perspective on electrical problems.

Finally, we have the multi-functional power circuit probes/testers like the Autel 2025, VDIAGTOOL V500 Pro, VDIAGTOOL V200 Pro, and the GODIAG Power Circuit Probe. These are the heavy-hitters, offering a much broader range of capabilities beyond just relay testing. Their component activation feature is particularly relevant for relays, allowing you to directly power relay coils or the circuits they switch, thus confirming relay operation within the vehicle’s system. Tools like the VDIAGTOOL V500 Pro go even further with oscilloscope and multimeter functions, offering deep-dive diagnostics for complex issues. For those needing a comprehensive tool for all sorts of electrical troubleshooting, including finding short/open circuits, checking voltage, resistance, and continuity, these advanced probes are indispensable. The Autel PowerScan PS100 stands out for its balance of features and value, providing professional-grade capabilities without the top-tier price tag. While the basic Test Light Automotive doesn’t activate components, it’s an essential entry-level tool for quickly verifying power and ground at relay sockets and throughout the circuit.

Choosing between these often boils down to your budget, expertise, and frequency of use. If you only occasionally test common relays, a dedicated, simple tester is probably sufficient. If you’re a professional or a serious enthusiast who regularly diagnoses complex electrical issues, investing in a multi-functional power probe will provide the most bang for your buck by covering a wide range of accurate electrical testing scenarios, including those involving relays.

Final Verdict

After thoroughly reviewing these diverse options, it’s clear that the “best” relay tester is truly subjective to your specific needs, skill level, and the nature of the electrical testing you perform. However, I can offer some insights to help you make an informed choice when searching for the best relay testers for accurate electrical testing.

For DIYers and hobbyists seeking a straightforward and easy-to-use solution, I’d lean towards the Sound Troubleshooting Automotive Relay Tester. Its automatic detection and clear LED indicators make relay testing foolproof, giving you immediate confidence in your diagnosis without a steep learning curve. If portability and independence from a car battery are paramount, the Performance Tool 3009 is an excellent choice for its cordless convenience and instant results.

For those tackling more complex diagnostics and wanting to isolate components, the RVMARINEPAT Relay Bypass Switch & Diagnostic Tester (6-pack) offers incredible value. While not a traditional tester, its ability to bypass relays and directly activate components is invaluable for pinpointing issues in relay-controlled circuits, and the variety of included switches makes it highly versatile for various vehicle models.

However, if you’re a professional technician or a serious automotive enthusiast looking for a comprehensive tool that handles not just relays but a full spectrum of electrical diagnostics, then a multi-functional power circuit probe is your best bet. The 2025 Autel PowerScan PS100 Power Circuit Probe Kit strikes an excellent balance of advanced features, ease of use, and competitive pricing, making it a top contender for in-depth electrical troubleshooting, including precise relay circuit testing. The VDIAGTOOL V200 Pro is also a very strong choice in this category, particularly with its dedicated breaker finder mode, adding significant value for wire tracing and open circuit detection. For the ultimate in diagnostic power, the VDIAGTOOL V500 Pro with its oscilloscope and advanced testing modes is an investment that will pay dividends for high-level electrical work.

Ultimately, assess your primary needs. Do you need a simple “good/bad” test? A way to bypass a relay and power a component? Or a comprehensive tool for intricate circuit analysis? The right choice will empower you with accurate electrical testing and significantly streamline your diagnostic process.

Comprehensive FAQ Section

Q1: What is a relay tester and why do I need one for accurate electrical testing?
A relay tester is a diagnostic tool designed to check the functionality of automotive relays. Relays are essentially electrical switches that control higher current circuits with a lower current signal. If a relay fails, it can cause a wide range of electrical problems, from non-working headlights to a no-start condition. Using a dedicated relay tester or a multi-functional circuit probe that can test relays helps you quickly determine if the relay itself is the problem, saving you time and preventing unnecessary parts replacement during electrical testing.

Q2: What’s the difference between a dedicated relay tester and a multi-functional power circuit probe?
A dedicated relay tester (like the Sound Troubleshooting or Performance Tool models) is designed specifically to test relays. You plug the relay in, and it provides a simple pass/fail indication of the relay’s internal coil and contact functionality. A multi-functional power circuit probe (like the Autel PowerScan or VDIAGTOOL models) is a more versatile tool that can perform a wide range of electrical tests, including voltage, resistance, continuity, and often, component activation. While not solely a relay tester, their component activation feature allows you to power relay coils or the circuits they control, indirectly testing their operation within the vehicle’s system, which is crucial for accurate electrical testing.

Q3: Can I test a relay with just a multimeter?
Yes, you can test a relay with a multimeter, but it’s a more manual and time-consuming process. You’d need to identify the coil and contact pins, apply a 12V power source to the coil (listening for a click), and then use the multimeter to check for continuity across the contacts in both the energized and de-energized states. A dedicated relay tester automates this process, making it much faster and simpler for accurate electrical testing.

Q4: How do relay bypass switches (like YUXIVCNE or RVMARINEPAT) aid in electrical testing?
Relay bypass switches are not designed to test the internal function of a relay. Instead, they allow you to “bypass” the relay in a circuit, directly supplying power to the component that the relay normally controls (e.g., a fuel pump or window motor). This helps you determine if the component itself is working, or if the fault lies upstream with the relay, the relay’s control circuit, or the wiring. It’s a powerful diagnostic step for accurate electrical testing that isolates the problem.

Q5: What are the key features to look for in the best relay testers for accurate electrical testing?
Look for:
* Compatibility: Does it test 4-pin, 5-pin, or different voltage relays?
* Ease of Use: Clear indicators (LEDs, display), automatic pin detection.
* Functionality: Does it just test the relay, or can it activate components and trace circuits?
* Power Source: Self-contained (batteries) or needs external 12V?
* Safety Features: Overload protection, short circuit detection.
* Durability and Build Quality: Will it withstand regular shop use?

Q6: Why is “component activation” important when choosing an electrical testing tool that handles relays?
Component activation is a crucial feature, especially in multi-functional power circuit probes. It allows you to directly supply power or ground to an electrical component, such as a relay’s coil, a motor, or a light. For relays, this means you can manually energize the relay to confirm it clicks and switches properly, or you can power the component that the relay should be controlling. This provides a clear, real-world test of the circuit’s functionality, which is essential for accurate electrical testing and efficient troubleshooting.

Q7: Can a relay tester also help locate short circuits?
Dedicated relay testers typically focus only on the relay’s internal function. However, many multi-functional power circuit probes (like the Autel and VDIAGTOOL models) include features specifically designed to locate short circuits and open circuits. They can quickly trace wires, detect current draw, and identify problem areas in the wiring that might be causing relays to fail or fuses to blow. This makes them highly versatile for comprehensive accurate electrical testing.
