best dial bore gauge for engine building

When I’m knee-deep in an engine build, whether it’s a hot rod or just refreshing a daily driver, one tool I absolutely can’t do without is a reliable dial bore gauge. Getting those cylinder bores just right – checking for taper, ovality, or simply confirming the size – is critical for a long-lasting, powerful engine. If you’re looking for the best dial bore gauge for engine building, you’ve landed in the right spot. I’ve put a few to the test and compiled a guide to help you pick the perfect one for your shop.

IMAGE	PRODUCT NAME	AMAZON LINK
	Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge…	View on Amazon
	Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge…	View on Amazon
	Fowler 52-646-300-0, Cylinder Dial Bore Gage with 6″…	View on Amazon
	BINGOX Industrial Tools Dial Bore Gauge Kit – Precision…	View on Amazon
	Dial Bore Gauge 2″-6″ / 0.001″ Engine Hole Cylinder…	View on Amazon
	ALLmeter Dial Indicator Bore Gauge with 1.4″-6″/0.0005″…	View on Amazon
	Neoteck Digital Dial Indicator Bore Gauge with…	View on Amazon

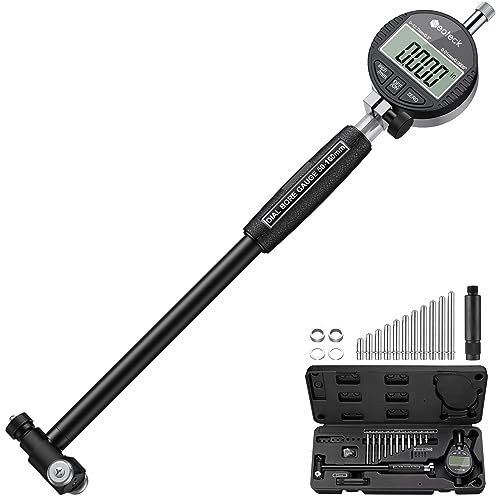

1. Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge…

This Neoteck bore gauge set brings a lot of value to the table with its digital indicator, offering precision that’s easy to read. It’s a solid choice for anyone needing accurate cylinder measurements, making quick work of checking for ovality and taper. The comprehensive kit ensures you’re ready for various bore sizes right out of the box, which is a huge plus for engine builders.

Key features that stand out:
– Accurate Digital Indicator: Measures 0-0.5 inches (0-12.7 mm) with 0.0005 inch (0.01 mm) resolution.
– Wide Measuring Range: Covers 2-6 inches (50-160mm) and measures up to 5.9 inches deep.
– Self-Centering Design: Ensures fast and accurate measurements with ease.
– Robust Construction: Features an all-metal clamping device and an insulated grip for comfort.
– Complete Kit: Includes 12 different gauge sizes and a sturdy storage case.

Pros:
– Digital readout simplifies precise measurements.
– Wide range of measuring probes included.
– Self-centering mechanism speeds up the process.
– Durable build quality for consistent use.
Cons:
– Requires careful zero-setting for accuracy.

Best for: Hobbyists and professional engine builders who prefer a digital readout for quick, precise cylinder bore inspections across a good range of sizes.

Expert Opinion: This Neoteck digital bore gauge is a fantastic entry point for those seeking digital accuracy without breaking the bank. The included accessories make it highly versatile for common engine building tasks.

2. Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge…

Surprisingly similar to the previous model, this Neoteck digital bore gauge also provides excellent precision and ease of use. It’s another strong contender if you’re prioritizing digital accuracy and a complete set of tools for engine work. With its self-centering feature and durable construction, it’s designed to withstand the demands of a busy workshop.

Key features that stand out:
– High-Resolution Digital Indicator: Provides 0.0005 inch (0.01 mm) resolution for meticulous checks.
– Versatile Bore Gauge Range: Suitable for 2-6 inch (50-160mm) bores with a 5.9-inch measuring depth.
– User-Friendly Self-Centering: Speeds up the process of detecting ovality and taper.
– Durable & Professional: Features all-metal clamping and an insulated handle for consistent performance.
– Comprehensive Accessories: Comes with a full set of 12 measuring probes and a protective case.

Pros:
– Digital display minimizes reading errors.
– Extensive range of anvils for various bore sizes.
– Insulated grip improves handling comfort.
– Sturdy carrying case for organized storage.
Cons:
– Calibration requires attention to detail.

Best for: Engine builders who need a reliable, digitally precise bore gauge with a full range of accessories for detailed cylinder measurements.

Expert Opinion: Given its identical specifications to the first Neoteck, this unit reconfirms its solid performance. It’s a workhorse for precise engine bore measurements, offering reliable digital readings and a robust build.

3. Fowler 52-646-300-0, Cylinder Dial Bore Gage with 6″…

The Fowler dial bore gauge is a classic for a reason. Known for its quality and durability, this tool offers precise analog readings for checking cylinder bores. Its robust design, featuring carbide-tipped anvils, means it’s built to last in a professional setting. If you appreciate the tactile feedback and reliability of a traditional dial indicator, this Fowler is a top pick.

Key features that stand out:
– Accurate Analog Readings: Features a dial indicator with 0.0005″ graduations.
– Extended Measuring Depth: Capable of measuring up to 9.5 inches deep.
– Wide Range: Measures bore sizes from 2-6 inches.
– Durable Contact Points: Carbide-tipped anvils for enhanced wear resistance.
– Self-Centering: Ensures fast and accurate measurements every time.

Pros:
– Renowned brand for quality and precision.
– Carbide-tipped anvils offer superior durability.
– Deeper measuring depth than many competitors.
– Dependable analog display.
Cons:
– May require a bit more practice to read accurately than a digital gauge.

Best for: Professional mechanics and experienced engine builders who value traditional analog precision, durability, and a deeper measuring capability.

Expert Opinion: Fowler consistently delivers high-quality measuring tools. This bore gauge, with its carbide anvils and deep reach, is a prime example, offering long-term reliability for critical engine work.

4. BINGOX Industrial Tools Dial Bore Gauge Kit – Precision…

The BINGOX Industrial Tools Dial Bore Gauge Kit is designed for serious engine builders who demand high precision. With its sturdy stainless steel construction and a clear, easy-to-read dial, it’s built for consistent performance in challenging shop environments. This kit offers a good balance of accuracy, durability, and versatility for various engine rebuilding tasks.

Key features that stand out:
– High Precision Measurement: Achieves highly accurate readings up to 0.001″ increments.
– Wide Range & Compatibility: Measures bore sizes from 2″ to 6″, suitable for various engine applications.
– Easy-to-Read Dial Indicator: Provides precise and easily interpretable measurements.
– Durable Construction: Built with premium stainless steel for reliable performance.
– Complete Bore Gauge Set: Includes an assortment of measuring anvils, spacers, and extension rods.

Pros:
– Good accuracy for critical engine rebuilding.
– Stainless steel construction ensures longevity.
– Clear dial is easy to interpret.
– Comprehensive set for diverse applications.
Cons:
– 0.001″ increments might be less precise than some higher-end options.

Best for: Enthusiasts and professionals needing a durable, straightforward dial bore gauge for general engine rebuilding and machining tasks where 0.001″ precision is sufficient.

Expert Opinion: The BINGOX offers solid performance and durability. It’s a great all-around choice for anyone needing a reliable mechanical bore gauge for frequent use.

5. Dial Bore Gauge 2″-6″ / 0.001″ Engine Hole Cylinder…

This no-frills dial bore gauge is a straightforward tool for engine builders focused on core functionality and reliability. It covers the essential 2-6 inch range with 0.001″ graduations, making it perfectly adequate for many engine cylinder checks. Its self-centering design and two-point contact system help ensure you get accurate readings for critical measurements like ovality and taper.

Key features that stand out:
– Standard Measuring Range: Covers 2″-6″ with 0.001″ graduations.
– Self-Centering Extender: Ensures accurate and reliable cylinder bore measurements.
– Two-Point Contact System: Ideal for detecting geometry abnormalities.
– Portable Case: Provides easy organization and storage.
– Simple Operation: Straightforward zero-setting procedure.

Pros:
– Simple and effective for common bore measurements.
– Self-centering feature aids accuracy.
– Protective case for storage and transport.
– Good value for its functionality.
Cons:
– Accuracy of 0.001″ might not meet the most demanding specifications.

Best for: Home mechanics and hobbyist engine builders looking for an affordable, functional dial bore gauge for basic to intermediate engine rebuilding tasks.

Expert Opinion: This gauge gets the job done for most standard engine work. While it doesn’t offer the highest resolution, its simplicity and self-centering design make it a good practical choice.

6. ALLmeter Dial Indicator Bore Gauge with 1.4″-6″/0.0005″…

The ALLmeter Dial Indicator Bore Gauge stands out with its incredibly wide measurement range and impressive accuracy, making it a highly versatile tool for diverse engine projects. It’s designed to simplify workflow by allowing inner diameter measurements without extensive disassembly, which is a huge time-saver. The comprehensive set of measuring heads ensures you’re equipped for almost any task.

Key features that stand out:
– Non-Disassembly Measurement: Designed for effortless inner diameter measurement without disassembling machinery.
– Exceptional Measurement Range: Covers 1.4 inches to 6 inches with an effective depth of 6 inches (150 mm).
– Ultra-Precision Accuracy: Delivers 0.0005 inches accuracy with minimal error.
– Versatile Measuring Heads: Includes 15 standard measuring heads from 1.4″ to 4″.
– Two-Point Contact Design: Ensures highest accuracy in deep hole measurements.

Pros:
– Very wide measurement range for diverse applications.
– High accuracy for demanding precision work.
– Includes a large variety of measuring heads.
– Streamlines workflow by reducing disassembly needs.
Cons:
– Might be a bit overkill for basic engine jobs.

Best for: Professional workshops and engineers who require an extremely versatile and highly accurate bore gauge for a wide array of precision measurement tasks, including non-disassembly checks.

Expert Opinion: This ALLmeter gauge is a powerhouse for precision. Its broad range and high accuracy make it suitable for highly specialized engine building and other critical engineering tasks.

7. Neoteck Digital Dial Indicator Bore Gauge with…

This Neoteck digital bore gauge is a beast when it comes to range and completeness. With an impressive 0.7-6 inch measurement capability and a huge assortment of anvils, it’s ready for almost any cylinder, bearing housing, or piston measurement you throw at it. The large LCD display and dual measuring rods further enhance its usability and accuracy for complex engine builds.

Key features that stand out:
– Ultra Precise Measurement: Range from 0.7″ to 6″ with 0.0005″ accuracy and 0.001″ error.
– Two Measuring Rods: Includes rods for 0.7-1.5″ and 1.4-6″ ranges for maximum flexibility.
– Large LCD Display: Provides visual measured values to reduce manual reading error.
– Extensive Anvil Set: Comes with 23 different standard anvils for comprehensive coverage.
– Complete Toolbox: Packed with various accessories and a replaceable ABS storage box.

Pros:
– Extremely wide and versatile measurement range.
– High number of included anvils for fine-tuning measurements.
– Digital display is clear and reduces errors.
– Dual measuring rods enhance adaptability.
Cons:
– The sheer number of parts might be overwhelming for beginners.

Best for: Dedicated professional engine builders and machine shops needing the widest possible range and highest digital precision for intricate and varied engine building projects.

Expert Opinion: If you need a comprehensive, highly accurate digital bore gauge that can tackle virtually any engine dimension, this Neoteck kit is an outstanding choice. Its vast array of anvils is particularly impressive.

Comparing the Best Dial Bore Gauges for Engine Building

When picking the best dial bore gauge for engine building, understanding the differences is key.

For digital accuracy and ease of reading, the Neoteck Digital Indicator Bore Gauges (#1, #2, and #7) and the ALLmeter (#6) really shine. They eliminate guesswork with clear readouts, often offering 0.0005″ resolution. The ALLmeter stands out with its massive 1.4″-6″ range and non-disassembly capability, while the Neoteck #7 offers an even wider 0.7″-6″ range with a huge anvil assortment. Neoteck #1 and #2 (which are essentially the same product) provide a strong foundation for common 2-6″ bores.

If you prefer the tried-and-true reliability of analog dial gauges, the Fowler 52-646-300-0 (#3) and the BINGOX Industrial Tools (#4), along with the Generic Dial Bore Gauge (#5), are excellent options. The Fowler is a premium choice with carbide-tipped anvils and a deeper measuring depth (9.5″), making it incredibly durable and precise for professional use. The BINGOX and the generic 2″-6″ gauge offer good 0.001″ precision and solid construction for a more budget-friendly approach.

For versatility and comprehensive kits, the Neoteck #7 with its 23 anvils and 0.7-6″ range and the ALLmeter with 15 measuring heads and its wide 1.4-6″ range are hard to beat. They cover almost any measurement scenario you might encounter in engine building.

Ultimately, the choice often comes down to digital versus analog preference, your required accuracy (0.0005″ vs. 0.001″), and the range of bore sizes you’ll be working with. For critical engine building where every thousandth counts, a 0.0005″ resolution is generally preferred.

Final Verdict

Choosing the best dial bore gauge for engine building depends heavily on your specific needs, budget, and preference for digital versus analog.

For the ultimate precision and versatility in a digital format, the Neoteck Digital Dial Indicator Bore Gauge with 0.7″-6″ range (#7) is my top recommendation. Its expansive range, extensive anvil set, and clear digital display make it incredibly adaptable for almost any engine building scenario. If you need serious flexibility, this is your pick.

If you’re a professional who values traditional analog accuracy and exceptional durability, the Fowler 52-646-300-0 (#3) is a timeless choice. Its carbide-tipped anvils and deeper reach ensure it’ll be a staple in your workshop for years.

For excellent value and digital convenience for common engine sizes, either of the Neoteck Bore Gauge Set Digital Indicator Dial Bore Gauge… (#1 or #2) provides a fantastic blend of accuracy and user-friendliness without breaking the bank. They’re perfect for most home garage engine builds.

Ultimately, invest in the tool that matches your level of work and budget, ensuring it provides the accuracy you need for a successful engine build.

Best Dial Bore Gauge for Engine Building: FAQ Section

Q1: Why is a dial bore gauge essential for engine building?

A dial bore gauge is crucial for engine building because it allows you to precisely measure the internal diameter of cylinder bores. This helps detect critical issues like ovality (out-of-round), taper (variation in diameter from top to bottom), and general wear. Accurate measurements ensure proper piston-to-bore clearance, correct ring seating, and optimal engine performance and longevity. Without it, you’re guessing, which can lead to costly engine failures.

Q2: What’s the difference between a digital and an analog dial bore gauge?

The main difference lies in how the measurement is displayed. Digital bore gauges show the reading on an LCD screen, offering precise numerical values (often to 0.0005″ or 0.0001″) that are easy to read and less prone to manual interpretation errors. They often have features like unit conversion (inches/mm) and absolute/incremental measurements. Analog (dial) bore gauges use a needle on a graduated face, requiring the user to read the scale. While they can be just as accurate, they might take a bit more practice to read quickly and correctly, but they don’t require batteries and are often very durable.

Q3: How do I properly calibrate a dial bore gauge before use?

Proper calibration is vital for accurate measurements. You calibrate a dial bore gauge by setting it to a known standard, usually using a micrometer or a master ring gauge.
1. First, clean the bore gauge contacts and the micrometer/ring gauge.
2. Set your micrometer to the nominal bore size you expect to measure (e.g., 4.000 inches).
3. Insert the bore gauge into the micrometer’s jaws (or the ring gauge).
4. Adjust the dial indicator’s bezel until the needle points to “0” (or until the digital display reads the target size).
5. Gently sweep the gauge to find the smallest reading, which is the true diameter. Ensure the gauge is self-centered within the micrometer. Once set, it’s ready to measure your engine cylinder bores.

Q4: What does “self-centering” mean, and why is it important for engine work?

“Self-centering” refers to the bore gauge’s design, which typically includes spring-loaded anvils or guides that automatically align the measuring contacts perpendicular to the bore walls. This is important because it ensures that the gauge is measuring across the true diameter of the bore, not an oblique chord. This feature significantly improves measurement consistency and accuracy, especially when checking for ovality and taper, making the process faster and more reliable for engine builders.

Q5: What measuring range and accuracy should I look for in a bore gauge for engine building?

For most automotive engine building, a measuring range of 2 to 6 inches (50-150mm) is standard, as this covers common cylinder diameters. However, if you work on smaller or larger engines, adjust accordingly (e.g., the Neoteck #7 goes down to 0.7″). As for accuracy, for critical engine work, aim for a bore gauge with a 0.0005″ (0.01mm) resolution or better. While 0.001″ is acceptable for some tasks, the finer resolution of 0.0005″ provides the precision needed for performance builds and exact clearances.

Q6: How do I detect ovality and taper in an engine cylinder using a bore gauge?

To detect ovality, you measure the bore diameter at the same depth but at different rotational positions (e.g., 0, 90, 180, 270 degrees). A significant difference in readings indicates an out-of-round condition. For taper, you measure the bore diameter at various depths along the cylinder wall (e.g., at the top, middle, and bottom of the piston travel). Differences in readings at different depths reveal taper, which is often caused by uneven wear from piston rings. Both ovality and taper can lead to oil consumption, blow-by, and reduced power if not corrected during engine rebuilding.
